Identify Hose Connections—Loader-to-Mid-Mount Couplers
NOTE:

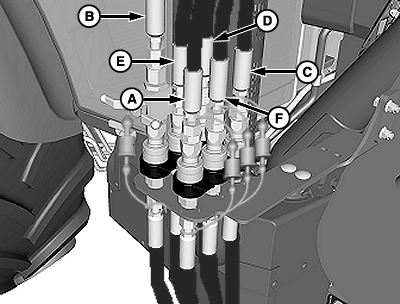

W26449-UN-17NOV14
Mid-Mount Couplers
Hoses are identified by color-coded tie bands near each fitting and color-coded caps and plugs on each hose.
|
Key |
Color |
Hydraulic Function |
|---|---|---|
|
A |
Red |
Lift Cylinder—Rod End |
|
B |
Blue |
Lift Cylinder—Head End |
|
C |
Yellow |
Bucket Cylinder—Head End |
|
D |
Black |
Bucket Cylinder—Rod End |
|
E |
Green |
Attachment Cylinder—Rod End |
|
F |
Orange |
Attachment Cylinder—Head End |
|
OUO6064,000133F-19-20141117 |
