Prepare the Loader

1.

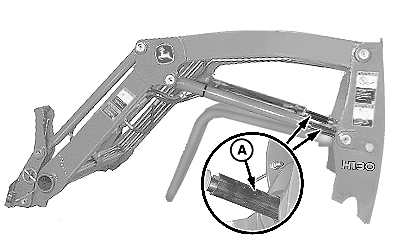

   W23187-UN-16OCT12

   A - Spacer (2 used)

   Remove loader from pallet and lay loader flat on ground, as shown.

---




2. Remove shipping banding and wire.

3. Remove and discard spacers (A) from lift cylinder rod ends.

4.

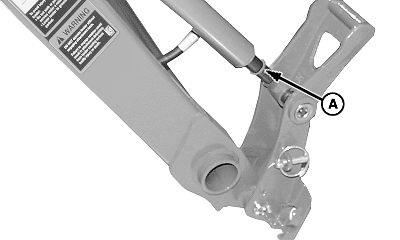

   W23188-UN-12OCT12

   Paint Mask Ring (Right-Hand Side Shown)

   A - Paint Mask Ring

   Cut paint mask rings (A) off all hydraulic cylinders.

---

Install Bucket/Attachment

1.

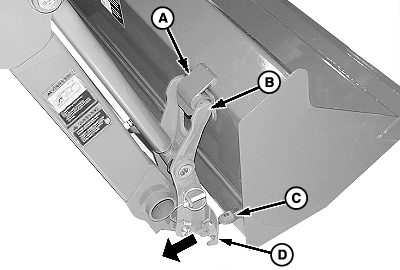

   W23189-UN-12OCT12

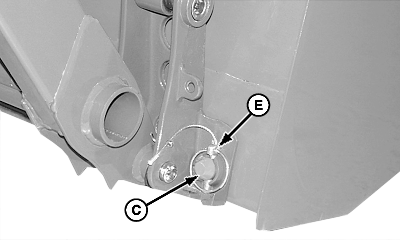

   W07273-UN-08MAR05

   A - Hook

   B - Holder

   C - Bucket/Attachment Pin

   D - Holder Strap

   E - Quick Lock Pin

   Roll top of bucket/attachment back and align hook (A) with holder (B).

---




2. Using lifting straps, raise front of loader high enough to allow pin (C) to locate into holder strap (D) on each side of attachment.

3. Remove quick lock pin (E) from storage position and install into pin (C) on each side of attachment.

Install Hydraulic Hoses

Install loader-to-tractor hydraulic hoses. (Refer to Installation Instructions available online to John Deere dealers.)
