Prepare to Attach Loader

1. CAUTION:

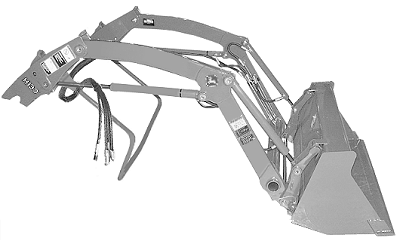

   W23177-UN-12OCT12

   To help prevent personal injury from tractor instability, be sure to prepare tractor for loader operation as outlined in Preparing the Tractor section.

   Make sure tractor is prepared for loader operation. (See Preparing the Tractor section.)

---




2. Check loader for any damaged or missing parts.

3. Be sure all hydraulic fittings on loader and tractor are free of dirt.

4.

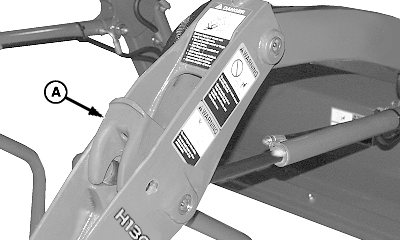

   W23178-UN-16OCT12

   A - Latch (1 each side)

   Latches (A) should be in LOCKED position, as shown.

---
