Identify Hose Connections

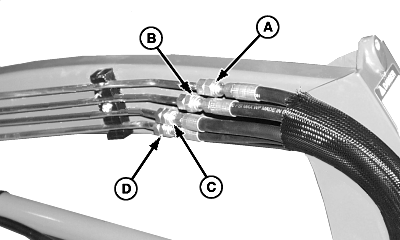

W07261-UN-01MAR05
W07409-UN-05MAY05

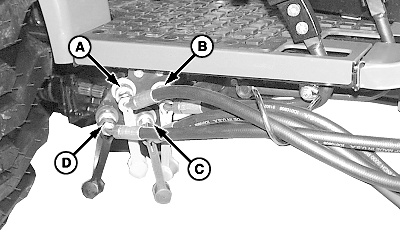

2210, 2305, 2320, 2520, 2720, 2025R, 2027R, and 2032R Tractor Couplers
W07262-UN-01MAR05

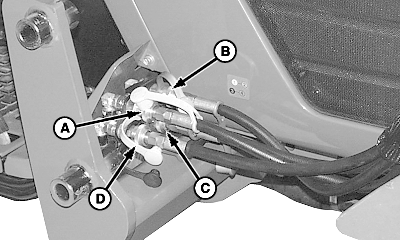

4100, 4110, and 4115 Tractor Couplers
Identify hoses by installing color-coded caps on end of hoses.Ports on plate that holds couplers on tractor are identified by both numbers and colors.
|
Key |
Port |
Plug/Cap Color |
Hydraulic Function |
|---|---|---|---|
|
A |
1 |
Black |
Bucket Cylinder—Rod End |
|
B |
2 |
Yellow |
Bucket Cylinder—Head End |
|
C |
4 |
Blue |
Lift Cylinder—Head End |
|
D |
3 |
Red |
Lift Cylinder—Rod End |
|
OUO6038,0002136-19-20121121 |
