Detach Loader

1. CAUTION:


   W14000-UN-05OCT88

   To help prevent personal injury caused by falling or shifting loader, always detach loader on a hard level surface. Do not detach loader equipped with a pallet fork. Use of a materials bucket is recommended.

   Remove ballast box. (See procedure in this section.)

---




2. Be sure loader is equipped with a materials bucket.

3. Start tractor engine.

4. Release parking brake and/or place transmission in NEUTRAL.

5. Dump bucket 10—20° and lower to ground.

6. Retract lift cylinders, raising front wheels 25—50 mm (1—2 in.) off the ground.

7.

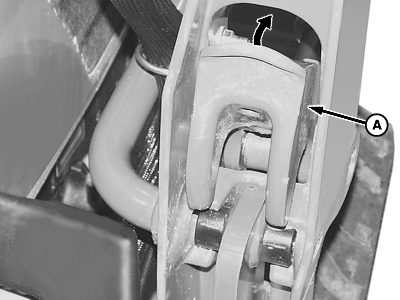

   W22499-UN-14MAY12

   Right-Hand Side Shown

   A - Latch

   Move both loader mast latches (A) upward into UNLOCKED position.

---




8.

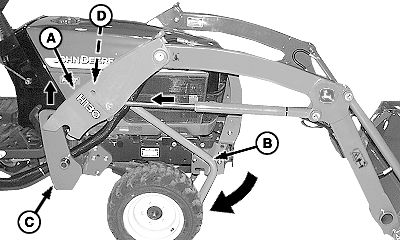

   W23113-UN-12OCT12

   A - Mast

   B - Parking Stand

   C - Frame

   D - Latch

   Extend loader lift cylinders until parking stand (B) contacts ground, masts (A) completely lift off frames (C) and latches (D) automatically snap into locked position.

---




9. Engage tractor parking brake and/or place transmission in PARK.

10. Shut off tractor engine and remove key.

11. CAUTION:


    X9811-UN-23AUG88

    To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

    Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)

---




12.
    W07405-UN-05MAY05

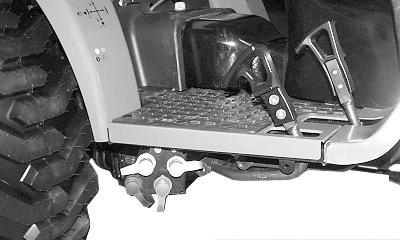

    2210, 2305, 2320, 2520, 2720, 2025R, 2027R, and 2032R Tractors


    W07250-UN-14APR05

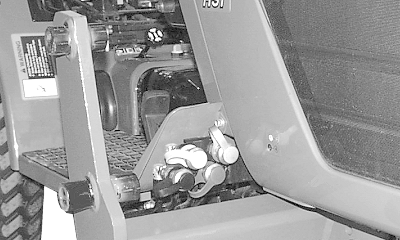

    4100, 4110, and 4115 Tractors

    Disconnect hoses at couplers and install dust plugs and caps.

---




13.

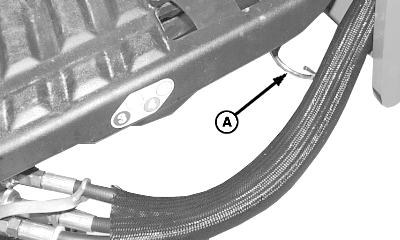

    W07300-UN-18MAR05

    A - Hose Guide

    2210, 2305, 2320, 2520, 2720, 2025R, 2027R, and 2032R Tractors: Remove hydraulic hoses from guide (A).

---




14. IMPORTANT:

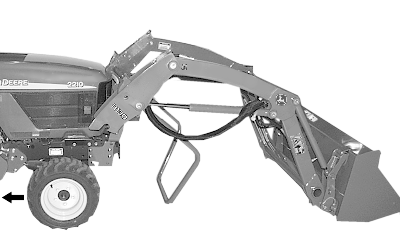

    W23114-UN-12OCT12

    To avoid hose damage, be sure hoses do not catch on tractor when moving away from loader.

    Store hoses on lift cylinder. DO NOT lay hoses on the ground.

---




15. Start tractor engine.

16. Disengage tractor parking brake, place transmission in REVERSE and slowly move tractor away from loader.
