Attaching the Bucket or Attachment


QUIK-CHANGE™ Attachment Carrier

W06637
W06637-UN-09MAR04

W06638
W06638-UN-09MAR04

A - Quick Lock Pin

B - Storage Position

C - Hook

D - Holder

E - Holder Strap

F - Bucket/Attachment Pin

  1. Start tractor engine.

  2. Extend bucket cylinders to angle carrier forward.

  3. Align holders (D) with hooks (C).

  4. Raise loader until carrier engages hooks, then roll back bucket/attachment.

  5. Raise loader high enough to check that straps (E) engage pins (F) on both sides.

  6. Shut off tractor engine.

  7. Remove quick lock pins from storage position (B).

  8. Install quick lock pins (A) through bucket/attachment pins.

  9. CAUTION: To avoid personal injury, make sure bucket/attachment is properly secured to carrier.

    Start tractor engine. Tilt bucket/attachment forward (extent bucket cylinders) and apply down pressure on bucket/attachment against ground to verify that the carrier is fully engaged.

  10. Lower loader to the ground and shut off tractor engine.


Skid-Steer Attachment Carrier

W08389
W08389-UN-29NOV06

Left-Hand Lock Pin

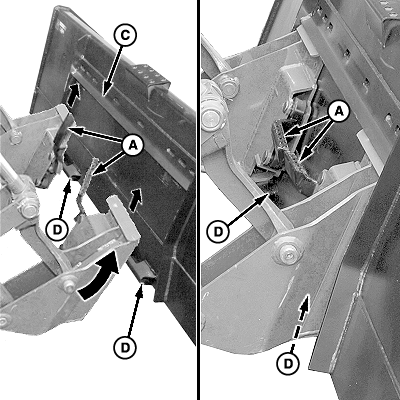

W08390
W08390-UN-28NOV06

A - Latch Handles

B - Lock Pin (1 each side)

C - Lip

D - Latches

  1. IMPORTANT: Make sure both latch handles (A) are completely up and lock pins (B) are fully retracted.

    Raise both latch handles (A) into the UP (unlatched) position.

  2. Start tractor engine and raise loader off ground.

  3. Extend bucket cylinders to tilt carrier forward.

  4. Slowly drive forward and raise loader, until carrier plates are positioned under lip (C) on bucket/attachment, then roll back bucket/attachment (retract bucket cylinders).

    NOTE: Bucket/attachment should rest against carrier plates.

  5. Lower loader completely to the ground and shut off tractor engine.

  6. Lower latch handles (A) to engage pins (B) with latches (D) on bucket/attachment.

  7. CAUTION: To avoid personal injury, make sure bucket/attachment is properly secured to carrier.

    Start tractor engine. Tilt bucket/attachment forward (extent bucket cylinders) and apply down pressure on bucket/attachment against ground to verify that pins (B) are fully engaged in latches (D).

    NOTE: If bucket/attachment is not securely attached to the skid steer carrier, repeat Steps 1—7.

  8. Lower loader to the ground and shut off tractor engine.

CAUTION:

X9811
X9811-UN-23AUG88

W07029
W07029-UN-17SEP04

A - Coupler, Male (1 per connection)

B - Coupler, Female (1 per connection)

C - Plug (1 per female coupler)

D - Cap (1 per male coupler)

Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

IMPORTANT: Before connecting coupler halves make sure that fittings are free of dirt and debris.

If equipped with hydraulic operated attachment (grapple bucket): Connect hydraulic hoses as follows:

  1. Shut off tractor engine and remove key.
  2. Move control lever(s) back and forth and side-to-side (if applicable) several times to relieve system pressure. (See your tractor Operator's Manual.)
  3. Push and hold collar on female coupler (B).
  4. Insert male coupler (A).
  5. Release collar on female coupler.
  6. Connect cap (D) and plug (C) together.
  7. Repeat Steps 3—6 for remaining hydraulic hose connection.

OUMX005,000288A-19-20091117
