Install Bucket/Attachment

W20276
W20276-UN-12JAN09

W07099
W07099-UN-20OCT04

A - Holder

B - Hook

C - Holder Strap

D - Bucket/Attachment Pin

E - Quick Lock Pin

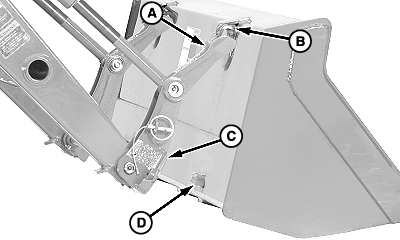

  1. Roll top of attachment back and align hook (B) with holder (A).

  2. Using lifting straps, raise front of loader high enough to allow pin (D) to locate into holder strap (C) on each side of attachment.

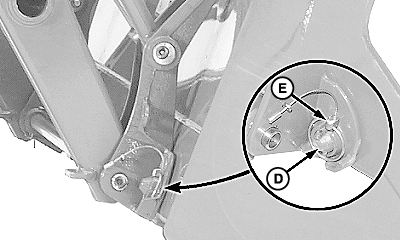

  3. Remove quick lock pin (E) from storage position and install into pin (D) on each side of attachment.
