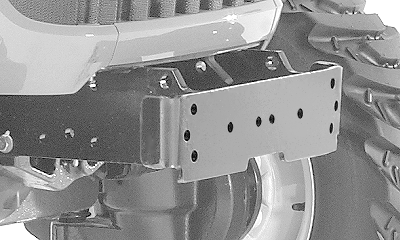

Removing Front Weights

W07085-UN-14OCT04

3X20 Series Tractor Shown

IMPORTANT: To prevent interference with loader, remove all weights.

NOTE: Front weight bracket "EXTENSIONS" are "NOT" compatible with the loader.

Remove all front weights.

IMPORTANT: Front weight bracket MUST NOT be bent or damaged in any way. Replace if necessary.

All EXCEPT 4105 Tractor: Weight bracket is required for installation of loader and must remain on tractor.
