Installing Hitch Pin Bushings on Ballast Box for Category 1 Quick Coupler Hitch

NOTE: Install bushings on both hitch pins. Right-hand side shown.

1.
   W04939-UN-22JUL02

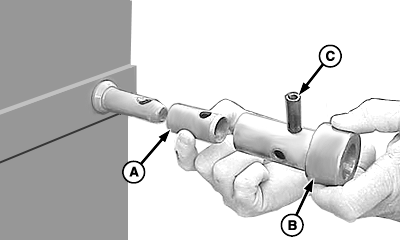

   A - Bushing

   B - Bushing

   C - Spring Pin

   Install bushing (A) over hitch pin with cross hole as shown.

---




2. Install bushing (B) as shown.

3. Align holes in bushings with hole in hitch pin and install spring pin (C).

4.
   W05063-UN-05FEB02

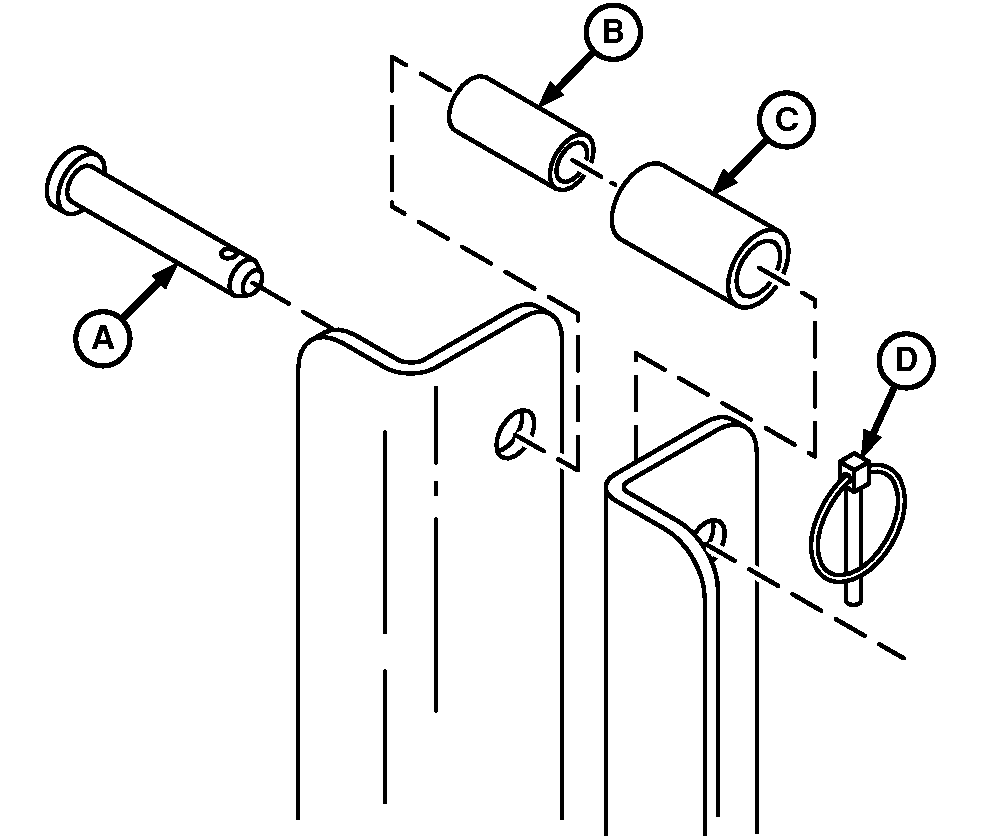

   A - Center Link Pin

   B - Bushing (Small)

   C - Bushing (Large)

   D - Quick-Lock Pin

   Assemble bushings (B and C).

---




5. Insert center link pin (A) through ballast box mast and bushing assembly. Fasten with quick-lock pin (D).
