Detaching Loader

  1. CAUTION:

    W14000
    W14000-UN-05OCT88

    To help prevent personal injury caused by falling or shifting loader, always detach loader on a hard level surface. Do not detach loader equipped with a pallet fork or bale spear (H165 only). Use of a materials bucket is recommended.

    Remove ballast box. (See procedure in this section.)


  2. W23960
    W23960-UN-07OCT13

    Be sure loader is equipped with a materials bucket.


  3. Start tractor engine.

  4. Release parking brake and/or place transmission in NEUTRAL.

  5. Dump bucket 10°—20° and lower to ground.

  6. Retract lift cylinders raising front wheels 25—50 mm (1—2 in.) off ground. (Do not retract lift cylinders completely.)

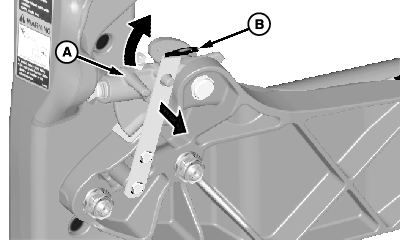

  7. W20248
    W20248-UN-08JAN09

    Left-Hand Side Shown

    A - Latch Handle

    B - Leaf Spring

    Place latches on both sides to the UNLOCKED position by pushing leaf spring (B) inward and pushing forward on latch handle (A).


  8. NOTE: Lift cylinders must be fully extended to raise masts high enough to clear front wheels.

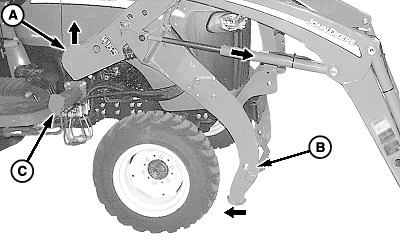

    W23982
    W23982-UN-07OCT13

    A - Mast (both sides)

    B - Parking Stand

    C - Mounting Frame (both sides)

    Extend lift cylinders until parking stand (B) contacts ground and masts (A) completely lift off frames (C).


  9. Engage tractor parking brake and/or place transmission in PARK.

  10. Shut off tractor engine and remove key.

  11. CAUTION:

    X9811
    X9811-UN-23AUG88

    To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

    Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)

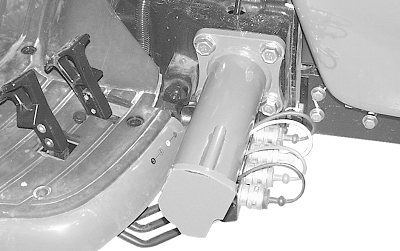

  12. W06926
    W06926-UN-17AUG04

    3203, 3X20 Series and 4300/4310 and 4400/4410 Tractors

    W06927
    W06927-UN-17AUG04

    970, 1070 and 990 Tractors (Left-Hand Side)

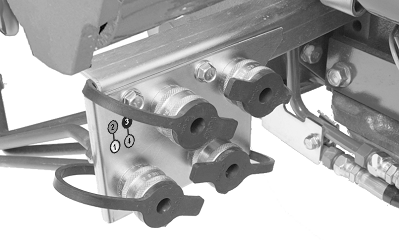

    W09299
    W09299-UN-19FEB08

    4005 Tractor (Right-Hand Side)

    Disconnect hoses at couplers and install dust plugs and caps.


  13. IMPORTANT:

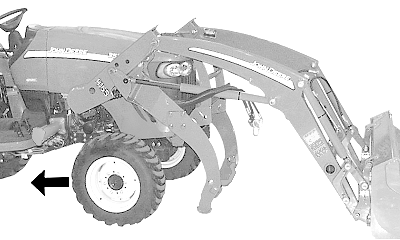

    W23983
    W23983-UN-07OCT13

    To avoid hose damage, be sure hoses do not catch on tractor when reversing away from loader.

    Store hoses on lift cylinder. DO NOT lay them on the ground.


  14. Start tractor engine.

  15. Disengage tractor parking brake and place transmission in REVERSE. Slowly move away from loader.

OUO6064,0000CD3-19-20131007
