Attaching Loader

1.
   W23985-UN-07OCT13

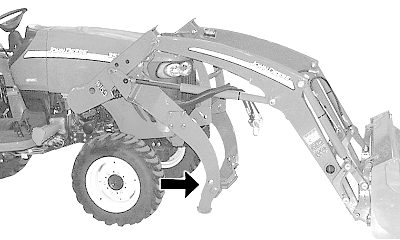

   Drive tractor slowly, straight into loader.

---




2. Align masts with mounting frames.

3. Engage tractor parking brake and/or place transmission in PARK.

4. Shut off tractor engine and remove key.

5. CAUTION:


   X9811-UN-23AUG88

   To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

   Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)

---




6. CAUTION: Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected correctly.

   NOTE: Hose connections are identified by matching the color-coded cap on the hose end with the same color-coded plug on the control valve coupler. If caps are missing, see IDENTIFYING HOSE CONNECTIONS in Service section.


   W06995-UN-13SEP04

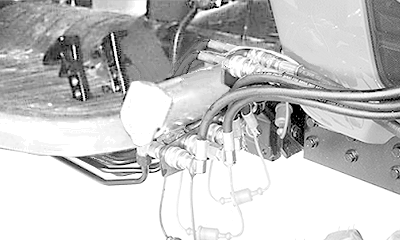

   3203, 3X20, 4X00, and 4X10 Series Tractors with Third-Function


   W07005-UN-31AUG04

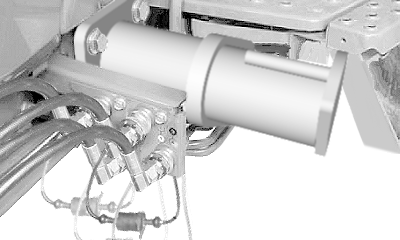

   855, 955, 870, 970, 1070, and 990 (Left-Hand Side)


   W09300-UN-19FEB08

   4005 Tractor

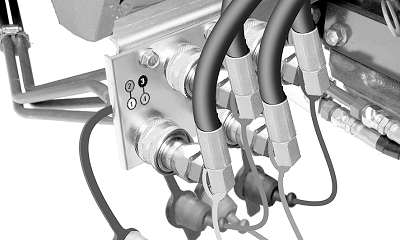

   Connect hoses using color-coded dust caps matching numbers and/or colors on decal by coupler plate.

   IMPORTANT:


   W06935-UN-26AUG04

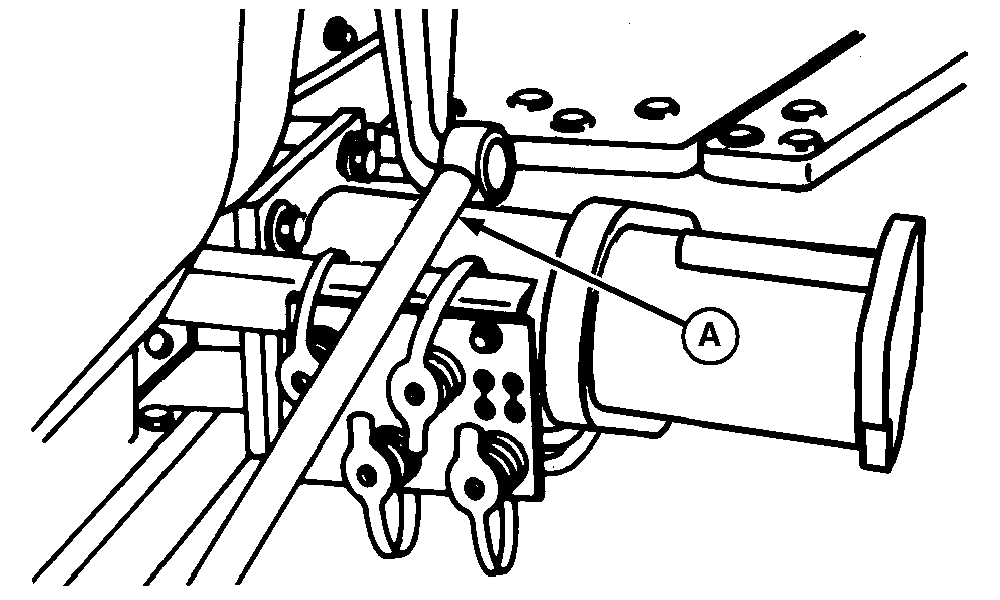

   A - Drag Link

   To prevent hose damage, be sure hoses are routed to avoid interference with drag link.

   H160 Loader on 870 tractor and H165 Loader on 970 tractor with drag link:

   1. Route two hoses on each side of drag link (A).

   2. Turn steering wheel from side-to-side to be sure there is no interference with drag link.

---




7. NOTE: It may be necessary to drive tractor forward slowly to keep masts/frames in line while performing the following procedures.


   W07060-UN-08OCT04

   Right-Hand Side Shown

   A - Mast

   B - End Plate

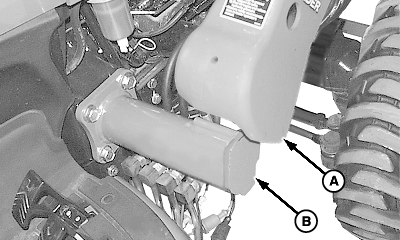

   Be sure end plates (B) on each mounting frame are aligned with inside guide of each mast (A).

---




8. Start tractor engine.

9. Release parking brake and/or place transmission in NEUTRAL.

10. IMPORTANT: Make sure masts are fully seated on frame tubes.


    W23986-UN-07OCT13


    W23960-UN-07OCT13

    A - Front Weight Bracket

    B - Parking Stand

    C - Mast (1 each side)

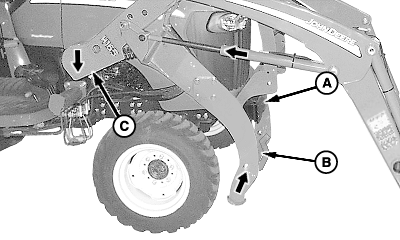

    Slowly retract lift cylinders. Masts (C) will lower onto mounting frames and parking stand (B) will raise to front weight bracket (A).

---




11. Dump bucket 10°—20°.

12. Retract lift cylinders raising front wheels 25—50 mm (1—2 in.) off ground. (Do not retract lift cylinders completely.)

13. IMPORTANT:


    W24413-UN-07OCT13


    W24415-UN-22OCT13

    All EXCEPT 4105 Tractor


    W24414-UN-22OCT13

    4105 Tractor

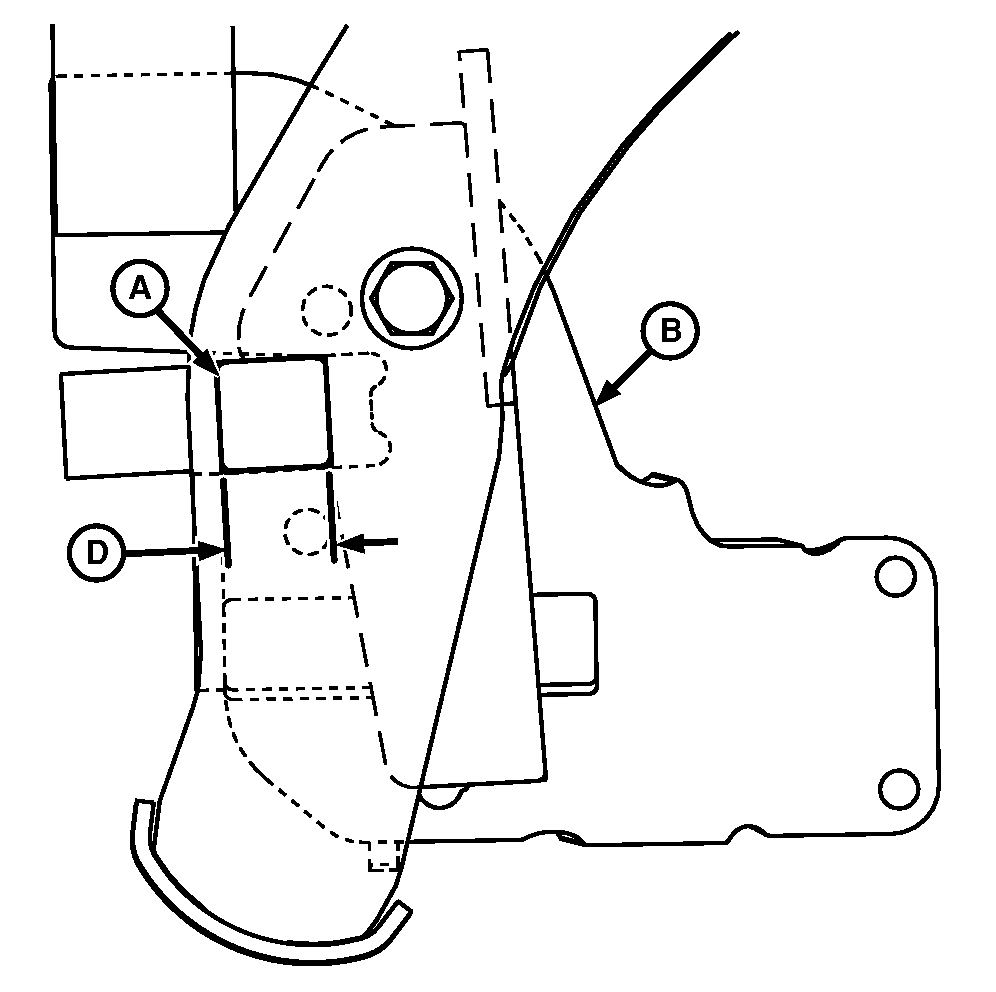

    A - Top Bar

    B - Weight Bracket

    C - Bottom Bar

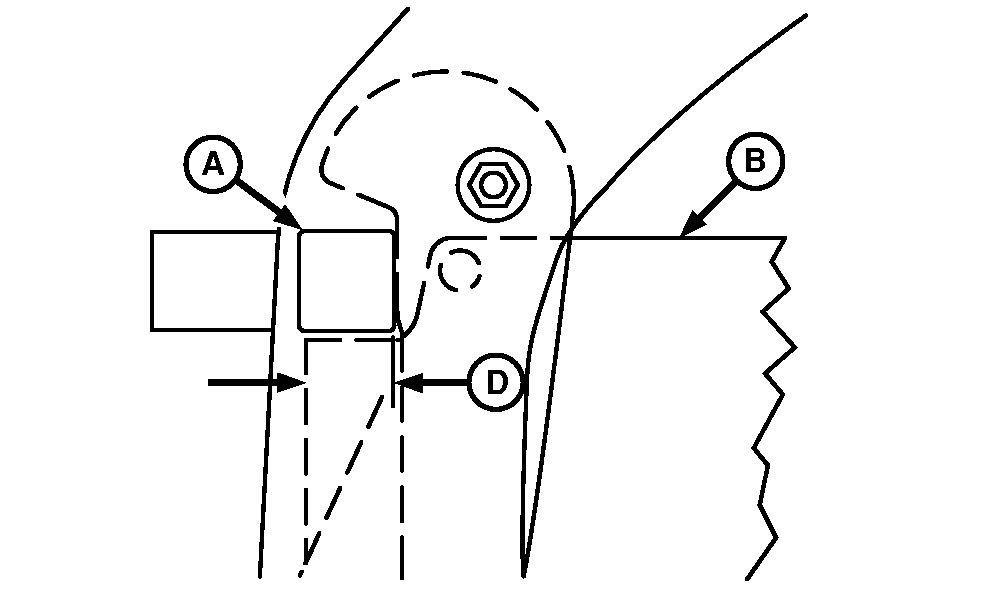

    D - Dimension, 25 mm (1.00 in.)

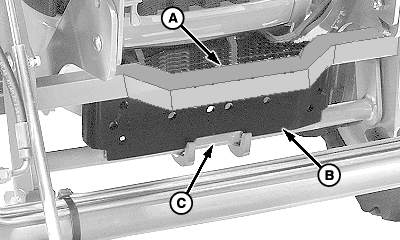

    Make sure there is no dirt or debris between bottom of front weight bracket (B) and bottom bar (C) of parking stand.

    Top bar (A) of parking stand should rest on top of front weight bracket with at least 25 mm (1.00 in.) of engagement.

    All EXCEPT 4105 Tractor: Check that bottom bar (C) of parking stand is securely hooked against bottom of front weight bracket (B).

---




14. Check that top bar (A) rests on top of front weight bracket with engagement within specification. If engagement is not within specification, see CHECKING PARKING STAND/WEIGHT BRACKET ENGAGEMENT in Service section.

    Item	Measurement	Specification
    Top Bar-to-Front Weight Bracket Engagement	Dimension	25 mm (1.00 in.)

15. IMPORTANT:


    W20255-UN-09JAN09

    Left-Hand Side Shown

    A - Cap Screw

    B - Latch

    C - Latch Pin

    D - Leaf Spring

    E - Brace Pad

    F - Mast Pad

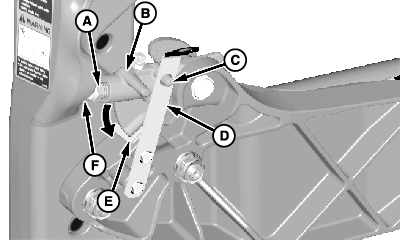

    On both sides, make sure latch (B) is fully seated against brace pad (E) and latch pin (C) is engaged with leaf spring (D).

    Place latch (B) on both sides of loader in "Locked" position by pulling rearward on handle to engage latch pin (C) with leaf spring (D). Cap screw (A) should contact mast pad (F). If not, see "Checking Parking Latch Cap Screw Adjustment" procedure in EVERY 50 HOURS of Lubrication and Maintenance section.

---




16.
    W07023-UN-16SEP04

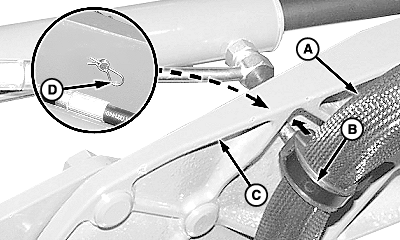

    A - Hose Bundle

    B - Hose Support

    C - Parking Stand

    D - Spring Locking Pin

    Make sure hose bundle (A) is routed to avoid contact with tractor. If hose support (B) (if equipped) was previously detached from parking stand (C), reinstall it using spring locking pin (D).

---




17. Extend lift cylinders and lift bucket from ground to ensure loader is properly mounted.

18. Install ballast box. (See Preparing the Tractor section.)

19. Engage tractor parking brake and/or place transmission in PARK.

20. Shut off tractor engine and remove key.
