4-IN-1 Bucket Operation

NOTE: Read all Safety Precautions before operating attachment.

All 4-IN-1 buckets are designed for various functions, including those shown below.

CAUTION:

  • Operate attachment only when properly seated at operator's station.
  • Do not exceed lift capacity of loader. See loader specifications.
  • Do not handle round bales with this attachment.
  • When using clam, lift load slightly and verify load is secure. If load appears unstable, lower the load, open clam, and reposition load to attain full stability.
  • Avoid rollovers. Reduce speed when operating over rough terrain, on a slope, or turning.
  • Avoid side slope travel. Drive up slope to pick up load, then down slope in reverse.
  • Carry loads as close to ground as possible.
  • Before exiting tractor, lower bucket to ground, shut off engine, remove key, and apply brake.
  • Do not detach loader from tractor with this attachment installed. Equip loader with material bucket when detaching.

  1. W20767
    W20767-UN-31MAR10

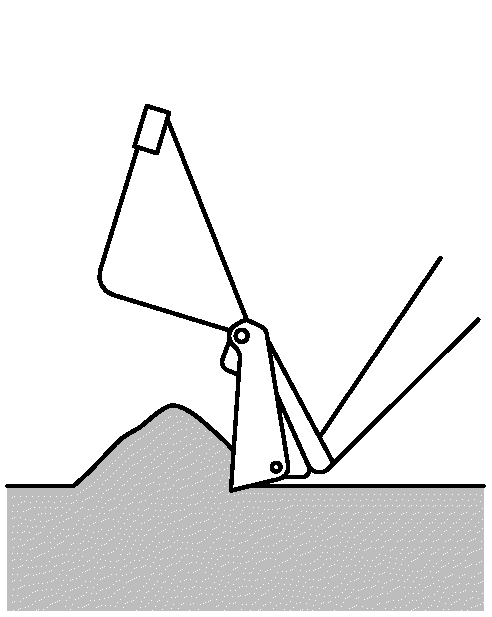

    Bulldoze

    Bulldoze— Tilt bucket slightly down and open bucket. Lower bucket to operating depth. Push material with back surface of bucket.


  2. W20768
    W20768-UN-31MAR10

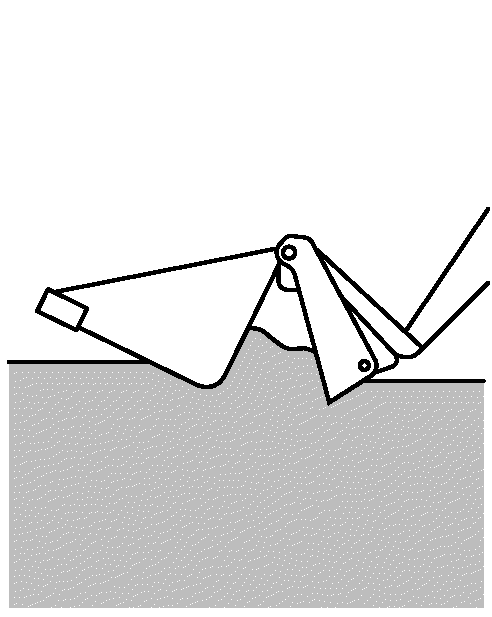

    Clam

    Clam— Tilt bucket 30 degrees down and open bucket. Lower bucket over material while closing bucket. Maintain even loading of material.


  3. W20769
    W20769-UN-31MAR10

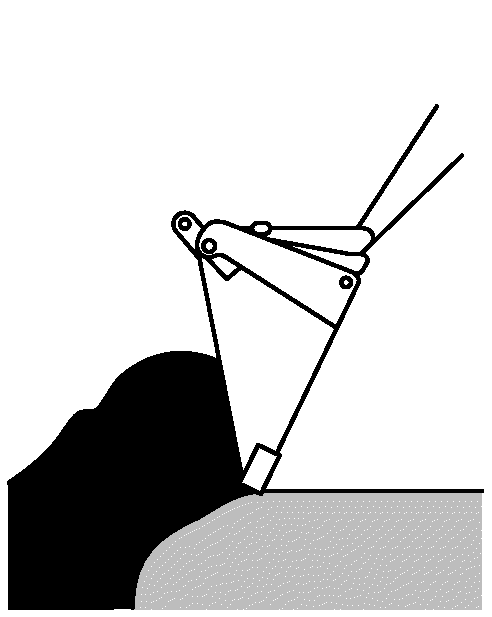

    Backfill

    Backfill— Tilt bucket 80 degrees down. Push material into cavity.


  4. W20770
    W20770-UN-31MAR10

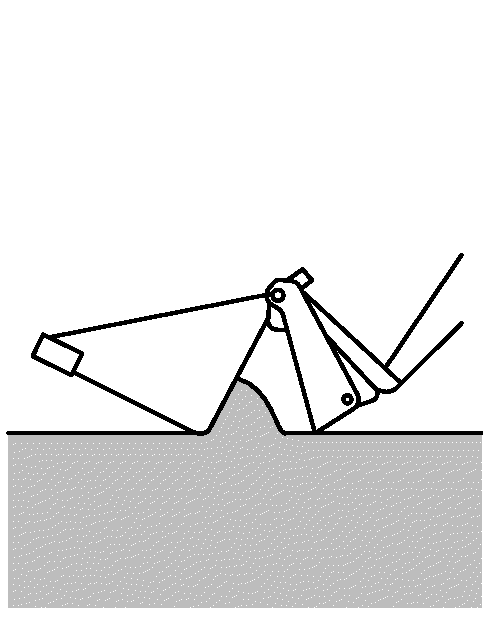

    Back Drag

    Back Drag— Tilt bucket 30 degrees down and open bucket slightly. Lower bucket and drag backward with back edge of bucket.


  5. W20771
    W20771-UN-31MAR10

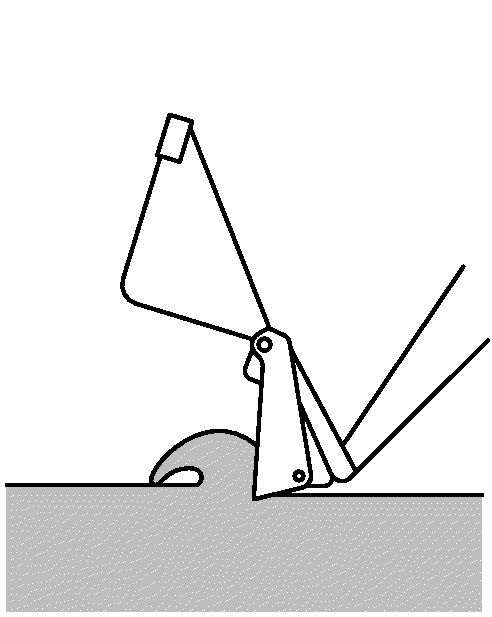

    Scrape

    Scrape— Tilt bucket slightly down and open bucket. Lower bucket onto hard surface. Push material with back surface of bucket.


  6. W20772
    W20772-UN-31MAR10

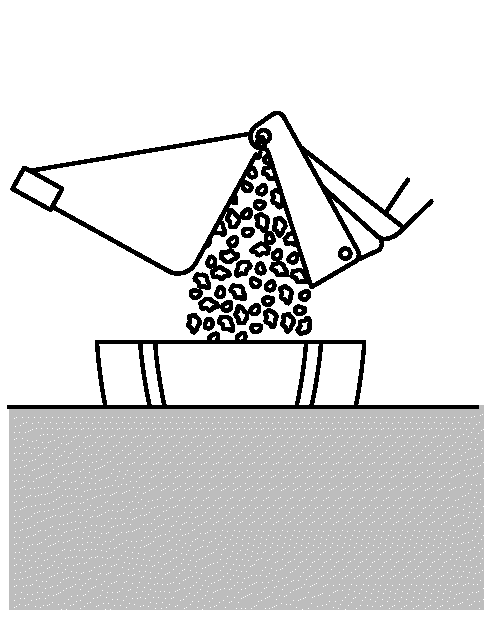

    Bottom Dump

    Bottom Dump— Position rear of bucket over dump target and open bucket.


  7. W20773
    W20773-UN-31MAR10

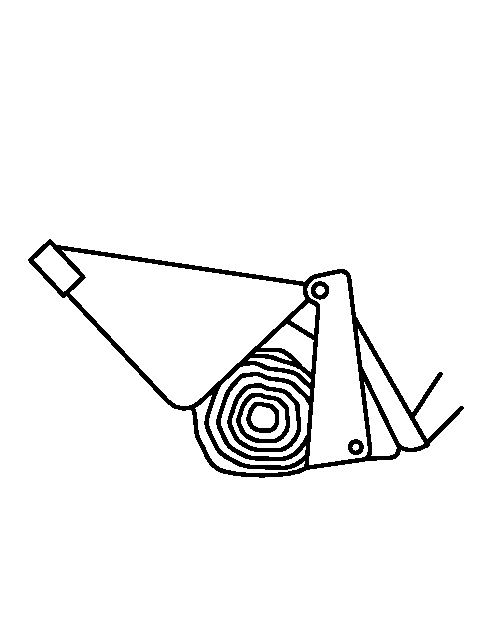

    Grab

    Grab— Tilt bucket slightly down and open bucket. Lower bucket over material (brush, logs, or bulky material). Close bucket enough to hold material securely.


  8. W20774
    W20774-UN-31MAR10

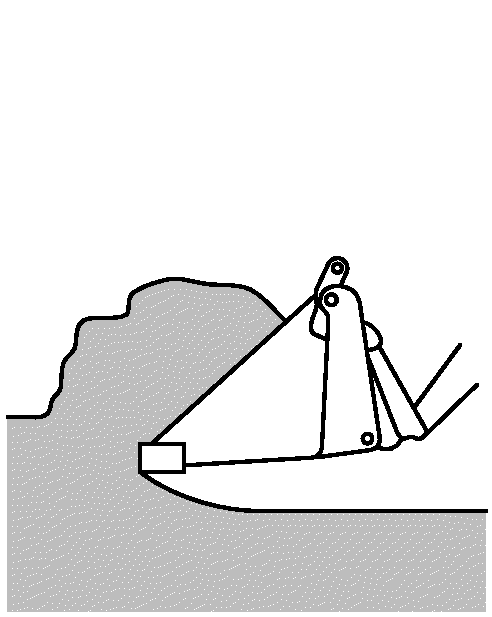

    Dig

    Dig— With bucket closed, dig material using same method as standard bucket.
