Every 10 Hours

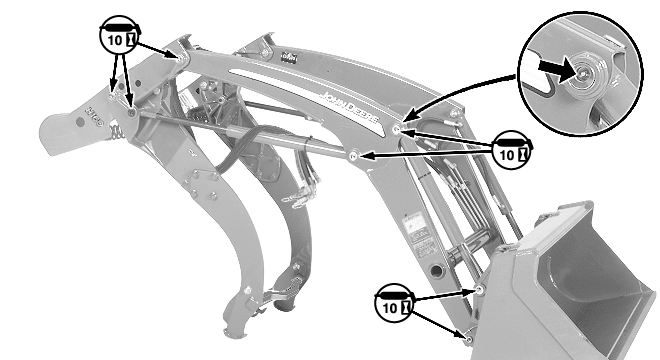

W23988
W23988-UN-07OCT13

Right-Hand Side Shown

H160 Loader: Lubricate fourteen fittings, seven on each side of loader.

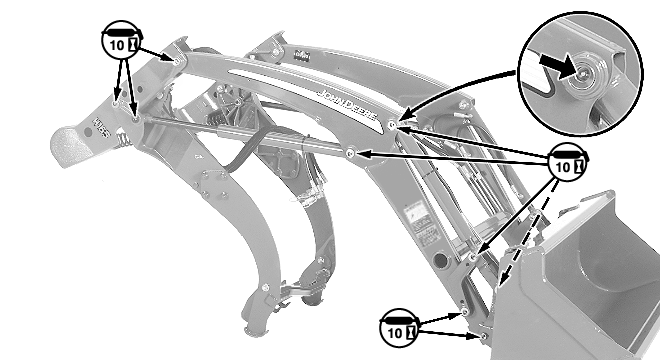

W23989
W23989-UN-07OCT13

Right-Hand Side Shown

H165 Loader: Lubricate eighteen fittings, nine on each side of loader.

OUO6064,0000CD7-19-20130722
