Identifying Hose Connections—H160 Loader (3X20, 4X00, and 4X10 Series Tractors)

W06946
W06946-UN-17SEP04

W07077
W07077-UN-12OCT04

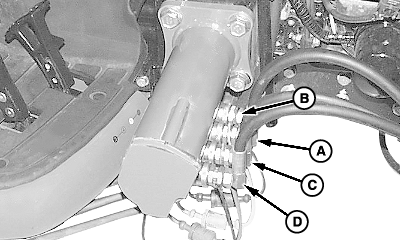

Identify hoses by installing color-coded caps on end of hoses.

Ports on plate that holds couplers on tractor are identified by both numbers and colors.

Key

Port

Plug/Cap Color

Hydraulic Function

A

1

Black

Bucket Cylinder—Rod End

B

2

Yellow

Bucket Cylinder—Head End

C

4

Blue

Lift Cylinder—Head End

D

3

Red

Lift Cylinder—Rod End

OUO6064,0000CDA-19-20130719
