Identifying Hose Connections—H160 Loader (855, 955, and 870 Tractors)

W07035
W07035-UN-23SEP04

W06934
W06934-UN-19AUG04

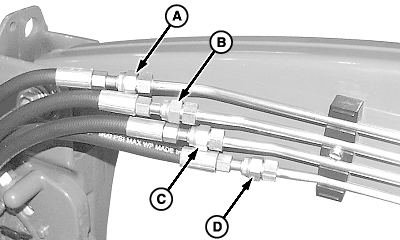

Identify hoses by installing color-coded caps on end of hoses.

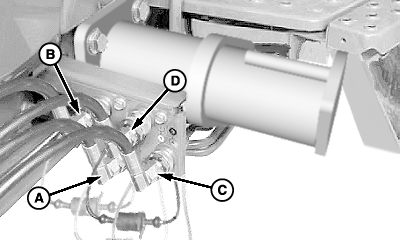

Ports on plate that holds couplers on tractor are identified by both numbers and colors.

Key

Port

Plug/Cap Color

Hydraulic Function

A

1

Black

Bucket Cylinder—Rod End

B

2

Yellow

Bucket Cylinder—Head End

C

4

Blue

Lift Cylinder—Head End

D

3

Red

Lift Cylinder—Rod End
