Prepare the Loader

NOTE: Model H165 shown. The following procedures apply to all models.

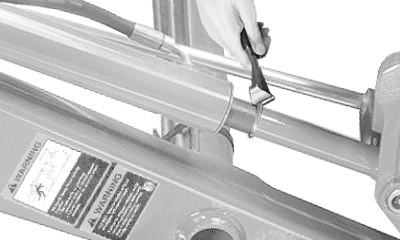

  1. W20275
    W20275-UN-12JAN09

    Remove shipping banding and wire.


  2. Cut paint mask rings off all cylinders.

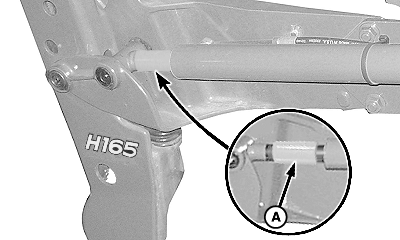

  3. W23993
    W23993-UN-22JUL13

    A - Spacer (1 each side)

    Remove and discard spacers (A) from boom cylinders.

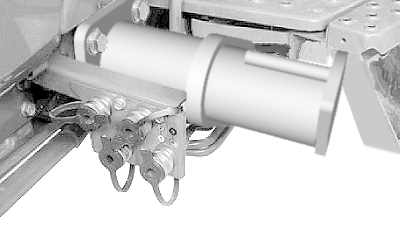

  4. W06927
    W06927-UN-17AUG04

    70 Series Tractor—Left-Hand Side Shown

    855, 955, 870, 970, 1070, and 990 Tractors with Hydraulic Couplers on Left-Hand Side: Install oil line conversion kit on loader to accommodate tractor with couplers on left-hand side. (Refer to Installation Instructions available online to John Deere dealers.)


  5. Install hydraulic hoses. (Refer to Installation Instructions available online to John Deere dealers.)

OUO6064,0000CE1-19-20130722
