Preoperating Checks

  1. CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Keep hands and body away from pinholes and nozzles which eject fluids under high pressure. Use a piece of cardboard or paper to search for leaks. Do not use your hand.

    If ANY fluid is injected into the skin, it must be surgically removed within a few hours by a doctor familiar with this type of injury or gangrene may result.

    X9811
    X9811-UN-23AUG88

    Check for loose hydraulic fittings.


  2. Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

  3. Check for hydraulic oil leaks. (See TIGHTENING PROCEDURE FOR FITTINGS in Service section.)

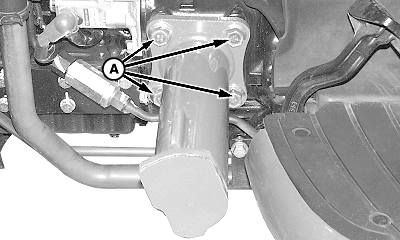

  4. W07072
    W07072-UN-12OCT04

    3X20 Series Tractor Shown

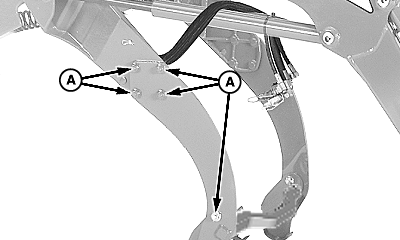

    W23987
    W23987-UN-07OCT13

    A - Hardware

    Check for missing or loose hardware (A). (See EVERY 50 HOURS in Lubrication and Maintenance section for correct hardware torque.)


  5. Check tractor transmission/hydraulic fluid level. (See your tractor Operator's Manual.)

  6. Lubricate the loader. (See Lubrication and Maintenance section.)

OUO6064,0000CE3-19-20130722
