Adjusting Bucket Level Indicator

  1. NOTE: Indicator position for a bucket will not be the same for another attachment.

    W24421
    W24421-UN-07OCT13

    W23992
    W23992-UN-07OCT13

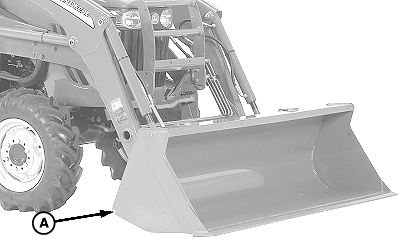

    A - Bucket/Attachment

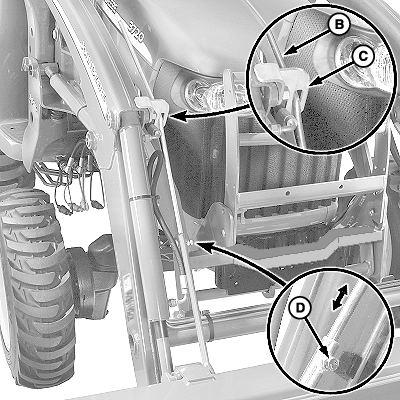

    B - Level Indicator Rod

    C - Guide Bracket

    D - Cap Screw

    Position bucket/attachment (A) level on ground.


  2. Loosen cap screw (D) and adjust rod (B) in tube so that detent rests in the bottom of guide bracket (C).

  3. Tighten cap screw to hold rod securely in place.

OUO6064,0000CE5-19-20131008
