Attach Loader to Tractor

  1. W23994
    W23994-UN-22JUL13

    Start tractor engine.

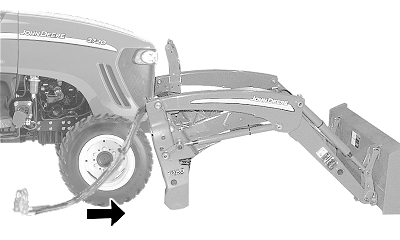

  2. Drive tractor slowly toward rear of loader stopping approximately 250 mm (10 in.) from loader.

  3. Engage tractor parking brake and/or place transmission in PARK.

  4. Shut off tractor engine and remove key.

  5. CAUTION:

    X9811
    X9811-UN-23AUG88

    To help prevent injury from escaping hydraulic oil under pressure, relieve pressure in the system.

    Move control lever(s) back and forth and side-to-side (if applicable) several times. (See your tractor Operator's Manual.)


  6. Connect hydraulic hoses to couplers on tractor using color-coded caps on hoses to match numbers and/or colors on decal by coupler plate. (See IDENTIFYING HOSE CONNECTIONS in Service section.)

  7. Start tractor engine.

  8. W23995
    W23995-UN-07OCT13

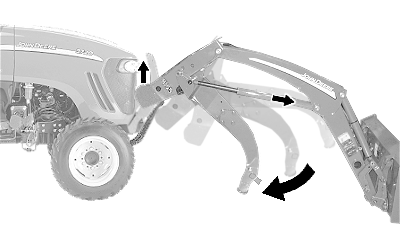

    Raise loader from ground by extending lift cylinders. Parking stand should contact ground and extend rearward toward tractor.


  9. Attach loader to tractor. (See ATTACHING LOADER in Attach Loader section.)

OUO6064,0000CE6-19-20130722
