Preparing to Attach Loader

1. CAUTION:

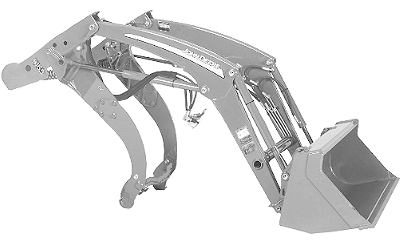

   W23984-UN-07OCT13

   To help prevent personal injury from tractor instability, be sure to prepare tractor for loader operation as outlined in Preparing the Tractor section.

   Make sure tractor is prepared for loader operation. (See Preparing the Tractor section.)

---




2. 4105 Tractor: Make sure hood guard is installed. Hood guard support aligns with loader parking stand.

3. Check loader for any damaged or missing parts.

4. Be sure all hydraulic fittings on loader and tractor are free of dirt.

5.

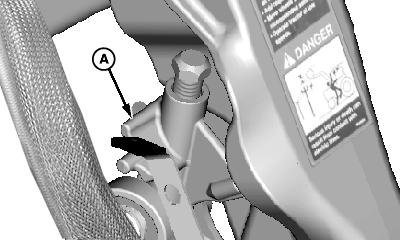

   W20252-UN-13JAN09

   Right-Hand Side Shown

   A - Latch (1 each side)

   Latches (A) should be in UNLOCKED position as shown.

---
