Bale Spear Handling Capacities
CAUTION:

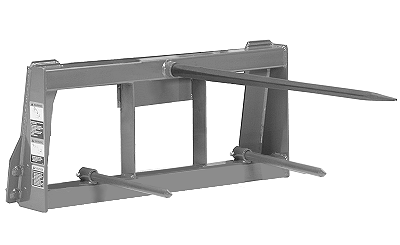

W23845-UN-23JUL13
Bale Spear
Handling bales that exceed rollback capacity rating may cause relief valve to open and loader to dump if attachment is dumped below 0° horizontal.NOTE: Rollback values are the minimum calculated value between fully dumped to level bucket with the loader raised.
Specifications based on a H165 loader.
|
H165 Loader |
|||
|
Single Bale Spear Lift Capacity |
|||
|
Bale Size Diameter x Length mm (in.) |
Bale Orientation |
||
|
From End kg (lbs.) |
From Side kg (lbs.) |
Standing Up kg (lbs.) |
|
|
1219 x 1219 (48 x 48) |
416 (916) |
— |
— |
|
Rollback Capacity |
|||
|
1219 x 1219 (48 x 48) |
474 (1043) |
— |
— |
|
H165 Loader |
|||
|
Triple Bale Spear Lift Capacity |
|||
|
Bale Size Diameter x Length mm (in.) |
Bale Orientation |
||
|
From End kg (lbs.) |
From Side kg (lbs.) |
Standing Up kg (lbs.) |
|
|
1219 x 1219 (48 x 48) |
398 (877) |
— |
— |
|
Rollback Capacity |
|||
|
1219 x 1219 (48 x 48) |
459 (1009) |
— |
— |
Round Bale Sizes and Weights
|
Round Bale Sizes and Weights |
||
|---|---|---|
|
Bale Size Diameter x Length mm (in.) |
Maximum Weight kg (lbs.) |
Material |
|
1219 x 1219 (48 x 48) |
341 (750) |
Dry Hay |
|
OUO6064,0000EF3-19-20131112 |
