Relieve Pressure in Hydraulic System

CAUTION:

W21409
W21409-UN-25JAN11

Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before connecting hydraulic or other lines. Protect hands and body from high-pressure fluids.

If an accident occurs, see a doctor immediately. Surgically remove any fluid injected into the skin within a few hours or gangrene can result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

Relieve hydraulic system pressure:

  1. Turn key to ON position. Do not start engine.

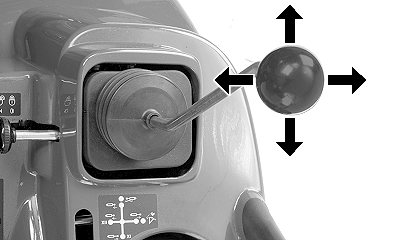

  2. Move loader multi-function lever in all directions several times.
  3. Turn key to OFF position.

OUO6064,00014F7-19-20160718
