Level and Scrape Forward

IMPORTANT: To avoid damage to loader or bending the bucket cutting edge on a solid object while scraping forward, position the bucket level or just below level. To reduce wear on the bucket cutting edge and damage to concrete when scraping, place the multi-function lever in the FLOAT position.

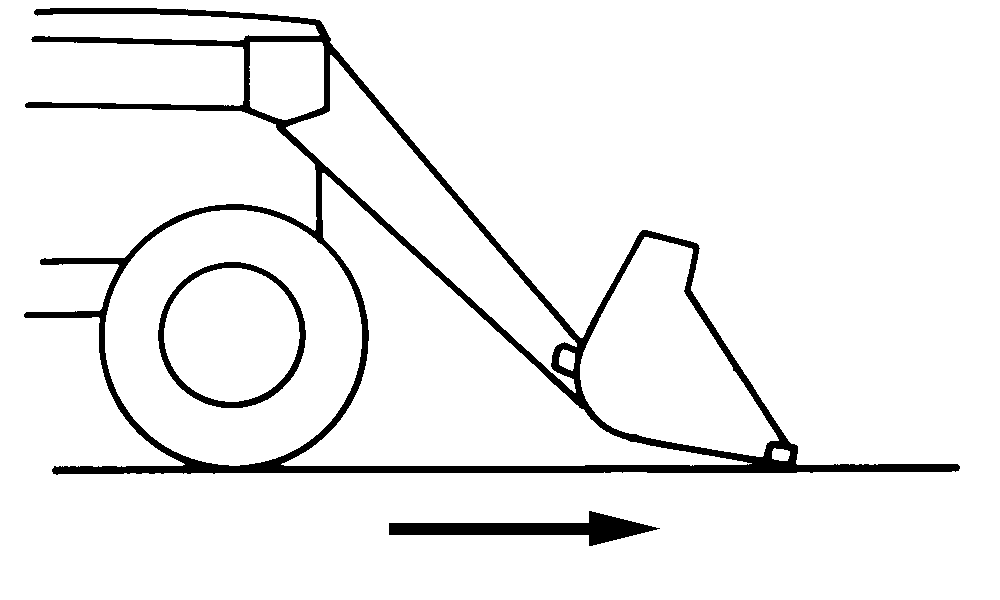

W01785
W01785-UN-07JAN97

To level or scrape forward;

  1. Position bucket level or slightly below level.
  2. Place multi-function lever in the FLOAT position.
  3. Drive the tractor forward.

OUO6064,0001505-19-20160506
