Add Ballast Weight

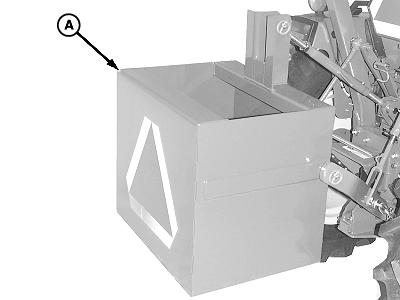

W05950-UN-24MAR03
3-Point Hitch

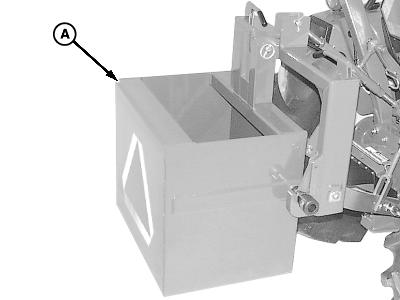

W05951-UN-24MAR03
Quick Coupler
A - Ballast Box
Weight can be added to the ballast box (A) by adding material such as sand or concrete. If more weight is required use tractor QuikTach weights.A 3-Point Hitch mounted implement can be used as ballast, but it must meet weight requirements of the ballast chart. (See your John Deere dealer.)
|
CALCULATED BALLAST |
||
|---|---|---|
|
SAND (Dry) |
CONCRETE |
|
|
Volume: 0.14 cu m (4.94 ft³) (0.18 yd³) |
||
|
Material |
217.5 (480) |
315.5 (695) |
|
Empty Box |
58.5 (129) |
58.5 (129) |
|
Total Weight |
276 (608) |
374 (824) |
|
OUO6064,0001563-19-20160718 |
