Access Front of Tractor—20 Series Tractors

CAUTION: Weight of hood guard (A) is approximately 38 kg (84 lb). Help prevent bodily injury. Use caution when handling hood guard as it can drop suddenly when lowered.

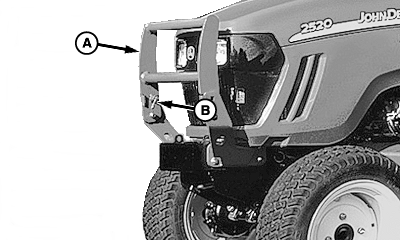

W27122
W27122-UN-10NOV15

A - Hood Guard

B - Latch Pin

2320, 2520, and 2720 Tractors—Pull back latch pin (B) and rotate guard (A) forward to access engine compartment.

OUO6064,0001703-19-20160509
