Every 250 HOURS—120R Loader
Tighten Mounting Frame Hardware
W22472-UN-03MAY12

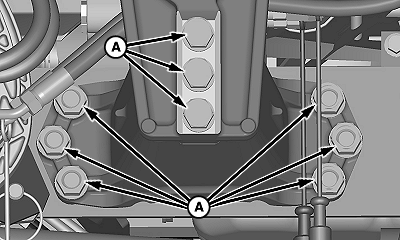

A - Mounting Frame Hardware
Tighten mounting frame hardware (A) on both sides to specifications.
| Item | Measurement | Specification |
| Hardware | Torque | 310 N·m (230 lb·ft) |
|
OUO6064,000174E-19-20160509 |
