Attaching the Bucket or Attachment

500-Style Carrier/Attachment

1.

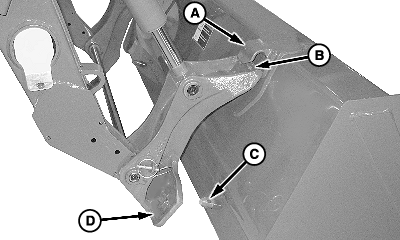

   W09796-UN-26AUG08

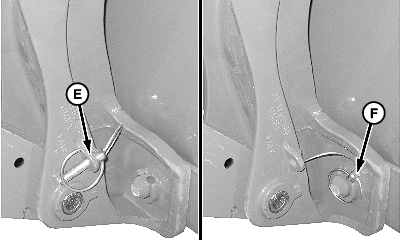

   W09797-UN-26AUG08

   A - Hook

   B - Carrier

   C - Bucket Pin

   D - Carrier Strap

   E - Storage Position

   F - Quick Lock Pin

   Start tractor engine.

---




2. Extend bucket cylinders to angle carrier (B) forward.

3. Align tops of carrier with hooks (A).

4. Raise loader until carrier engages hooks, then roll back bucket/attachment.

5. CAUTION: To avoid personal injury, make sure bucket/attachment is properly secured to carrier.

   Raise loader high enough to check that straps (D) engage pins (C) on both sides.

6. Place transmission in PARK and shut off engine.

7. Remove quick lock pins from storage position (E).

8. Install quick lock pins (F) through attachment pins.

9. Lower loader to the ground.

Global Carrier Attachment (Manual)

1.

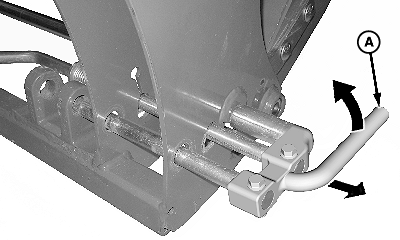

   W09830-UN-04SEP08

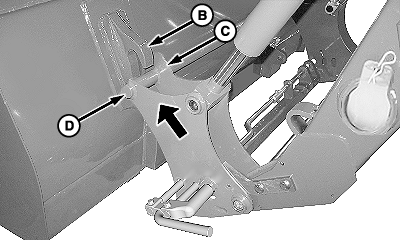

   W09834-UN-04SEP08

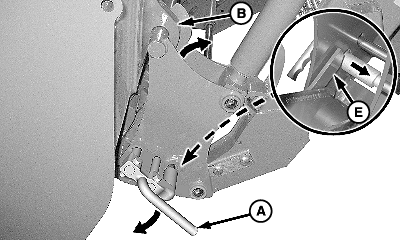

   W09835-UN-05SEP08

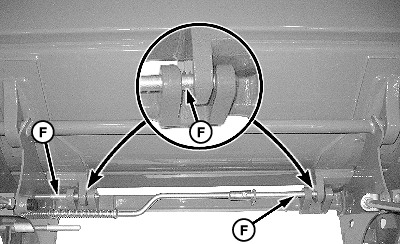

   W09836-UN-04SEP08

   A - Latch Lever

   B - Hook (1 each side)

   C - Guide (1 each side)

   D - Carrier Bracket (1 each side)

   E - Tab

   F - Pins

   Pull latch lever (A) outward and rotate upward to lock into place.

---




2. Start tractor engine.

3. Extend bucket cylinders to angle carrier brackets (D) forward.

4. Using guides (C) on inside of bar, align carrier brackets (D) under hooks (B) on bucket or attachment and raise loader until brackets engage hooks.

5. Roll back bucket or attachment (retract bucket cylinders) to remove any weight from edge of bucket and allow latch mechanism to contact tab (E) on left-hand loader boom. Latch will release and slide pins (F) into locked position.

6. CAUTION: To avoid personal injury, make sure bucket or attachment is properly secured to carrier.

   Raise loader high enough to check that pins (F) are fully engaged with bucket.

7. Lower loader to the ground and turn off tractor engine.

Skid-Steer Carrier/Attachment

1. IMPORTANT:


   W08389-UN-29NOV06

   Left-Hand Lock Pin

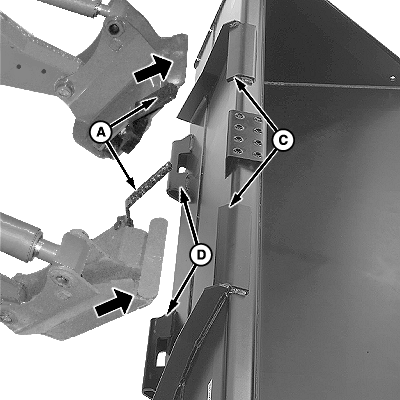

   W09837-UN-10SEP08

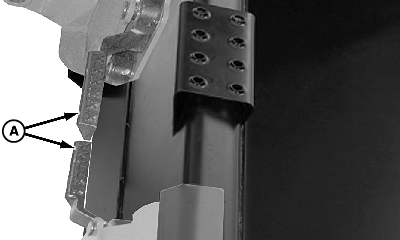

   W09838-UN-11SEP08

   A - Latch Handles

   B - Lock Pin (1 each side)

   C - Lip

   D - Latches

   Make sure both latch handles (A) are completely up and lock pins (B) are fully retracted.

   Raise both latch handles (A) into the UP (unlatched) position.

---




2. Start tractor engine and raise loader off ground.

3. Extend bucket cylinders to tilt carrier forward.

4. Slowly drive forward and raise loader, until carrier plates are positioned under lip (C) on bucket/attachment, then roll back bucket/attachment (retract bucket cylinders).

   NOTE: Bucket/attachment should rest against carrier plates.

5. Lower loader completely to the ground and shut off tractor engine.

6. Lower latch handles (A) to engage lock pins (B) with latches (D) on bucket/attachment.

7. CAUTION: To avoid personal injury, make sure bucket/attachment is properly secured to carrier.

   Start tractor engine. Tilt bucket/attachment forward (extent bucket cylinders) and apply down pressure on bucket/attachment against ground to verify that pins (B) are fully engaged in latches (D).

   NOTE: If bucket/attachment is not securely attached to the skid steer carrier, repeat Steps 1—7.

8. Lower loader to the ground and shut off tractor engine.

Hydraulic Operated Attachment (Grapple)

1. CAUTION:


   X9811-UN-23AUG88


   W03317-UN-31MAR99

   Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

   If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

   IMPORTANT: Before connecting coupler halves make sure that fittings are free of dirt and debris.

   Shut off tractor engine and remove key.

---




2. Move control lever(s) back and forth and side-to-side (if applicable) several times to relieve system pressure. (See your tractor Operator's Manual.)

3.

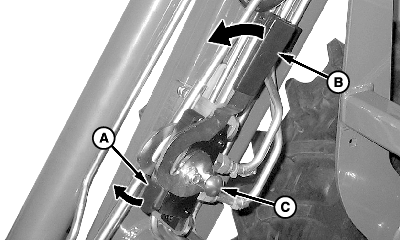

   W20034-UN-14OCT08

   A - Cover

   B - Lever

   C - Knob

   Raise cover (A).

---




4. Push red knob (C) IN and rotate lever (B) forward and down, as shown.

5. IMPORTANT:

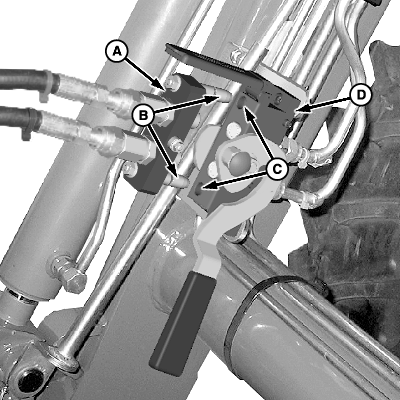

   W20035-UN-14OCT08


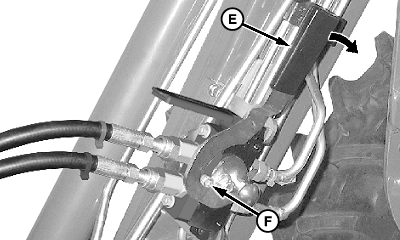

   W20036-UN-14OCT08

   A - Attachment Coupler Half

   B - Pins

   C - Holes

   D - Loader Coupler Half

   E - Lever

   F - Pin (1 each side)

   Multicoupler mating halves must align properly or damage to couplers can occur.

---




6. Place attachment coupler half (A) onto loader coupler (D). Make sure locating pins (B) on attachment coupler fit into corresponding holes (C) in loader coupler.

7. Rotate lever (E) up and rearward to engage pins (F) on attachment coupler half, locking halves together.
