Every Two Years

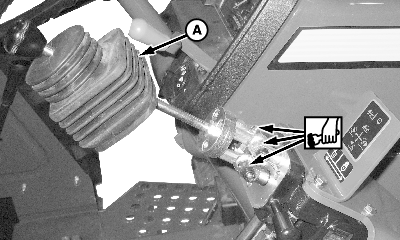

W09794
W09794-UN-17NOV10

A - Boot

Lubricate bearings on single lever ICV (if equipped).

  1. Remove boot (A) and slide up shaft.

  2. Apply grease liberally to the outside surface of each ball joint. Move lever in all directions to ensure lubricant penetrates ball joints.

  3. Slide boot down shaft onto housing.
