Install Loader on Tractor

1. CAUTION: To help prevent personal injury from falling or shifting loader, use a lifting device to position. Approximate weight of loader is 272 kg (600 lb).


   W09827-UN-29AUG08


   W09828-UN-29AUG08

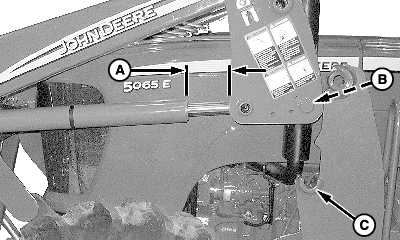

   A - Dimension, 150 mm (6 in.)

   B - Pin

   C - Saddle

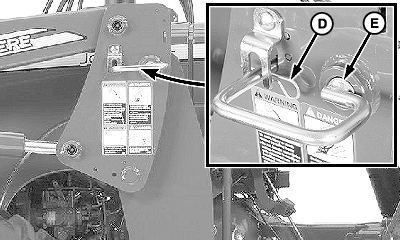

   D - Spring Locking Pin (2 used)

   E - Mast Pin (2 used)

   Attach lifting straps/chains to both sides and front of loader and an overhead hoist.

---




2. Position loader around front of tractor.

3. Manually extend lift cylinders to 150 mm (6 in.) (A).

4. Center tractor between loader masts, stopping tractor when saddles (C) on mounting frames are positioned under pins (B) on loader masts on each side.

5. Lower loader onto saddles (C).

6. Remove lifting straps/chains on boom arms.

7. Raise front of loader using strap/chain (A) around torque tube.

8. Make sure mast bushings are aligned with mounting frame bushings on both sides of loader.

9. Install mast pins (E) and spring locking pins (D) on both sides.

10. Lower loader and remove lifting strap/chain.

11. Connect hydraulic hoses. (Refer to Attach Loader section.)
