Adjusting Bucket Level Indicator

NOTE:

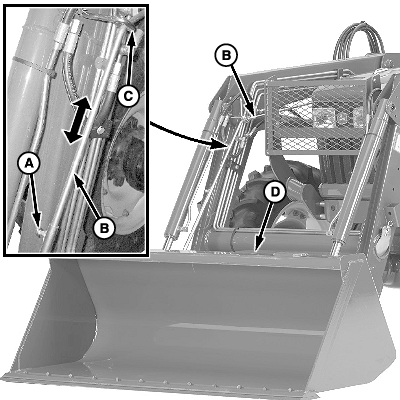

W09840
W09840-UN-08SEP08

A - Cap Screw

B - Level Indicator Rod

C - Guide Rod

D - Bucket/Attachment

Bucket top is parallel to bottom. Bucket is level when bucket top is level.

  1. Position bucket/attachment (D) level on ground.

  2. Loosen cap screw (A) and adjust level indicator rod (B) in tube until bend in rod rests in the bottom of guide rod (C). Tighten cap screw (A).

NOTE: Indicator position for a bucket will not be the same for an attachment.

When using level indicator for an attachment other than a bucket: Level the attachment and reposition the indicator rod.
