Servicing Loader and/or Tractor Safely (Loader Attached)

CAUTION:

W01151
W01151-UN-12AUG93

E50093
E50093-UN-08AUG01

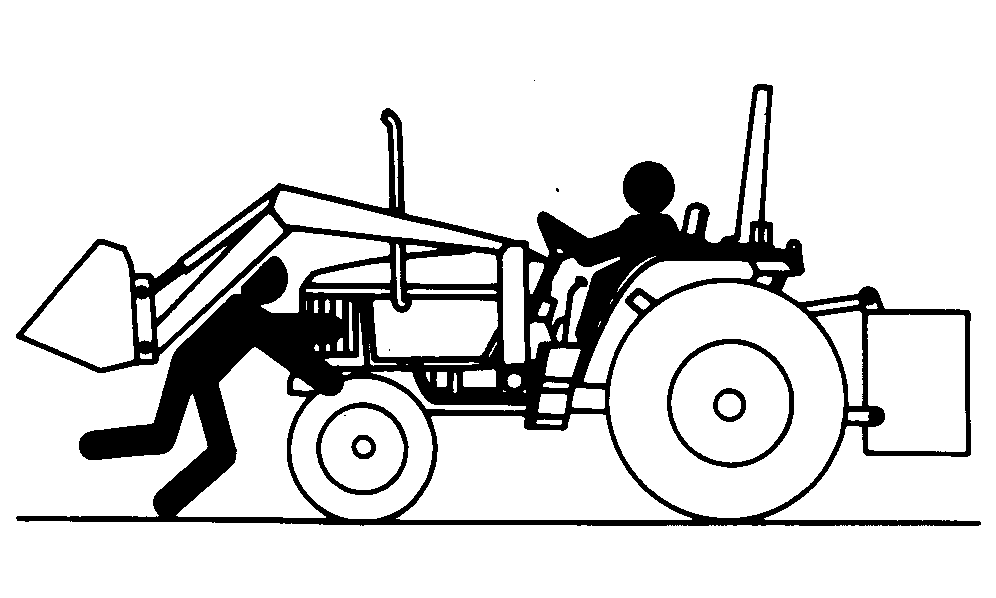

Help prevent bodily injury from accidental lowering of loader. Do not perform service around front of tractor with loader elevated and unsupported. Before lubricating or servicing the loader or tractor, perform the following:
  1. Engage parking brake and/or place transmission in PARK.
  2. Lower loader to ground.

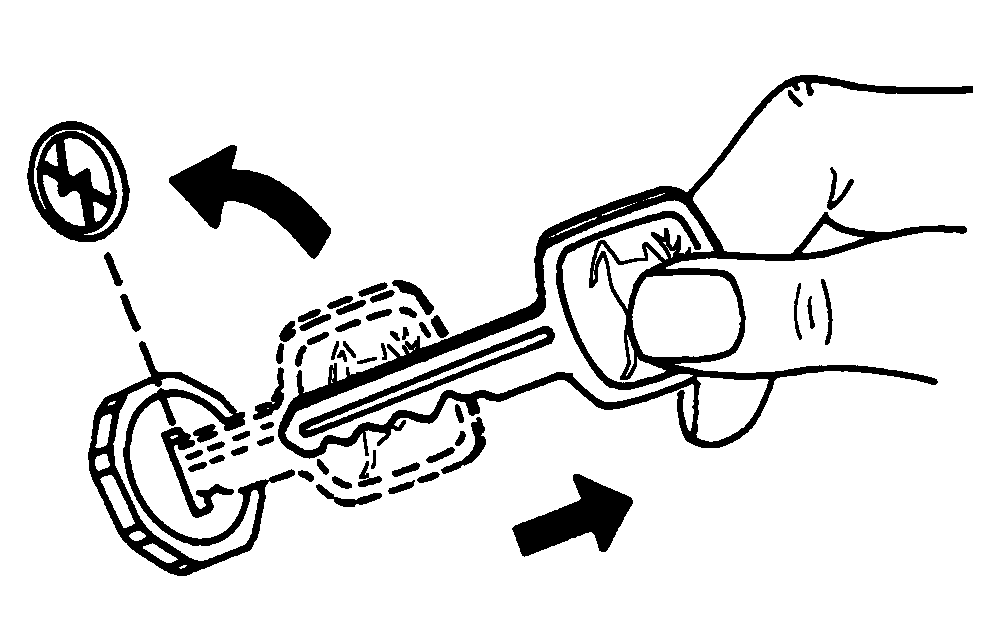

  3. Shut off engine and remove key.
  4. Relieve pressure in hydraulic system. (See procedure in tractor Operator's Manual.)

W12612
W12612-UN-05OCT88

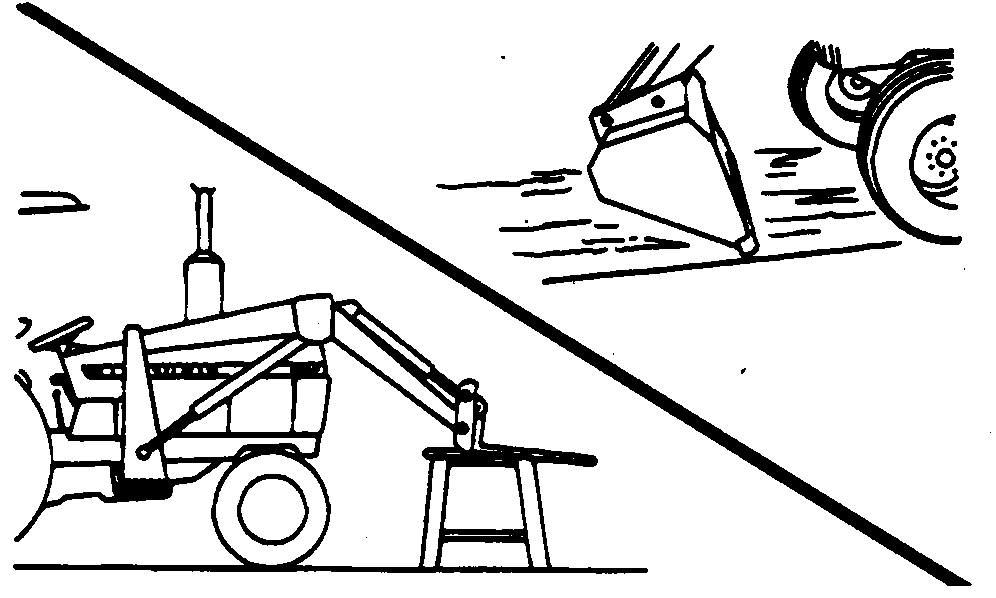

Normally, access to engine compartment and front of tractor can be made with bucket flat on ground. However, due to tractor size and tire variations, it may be necessary to do one of the following:

  • If equipped with a bucket: Dump bucket fully and lower loader to ground.
  • If equipped with an attachment: Raise loader to required height and place safety stands under frame of attachment. Lower attachment on stands, relieve hydraulic pressure and ensure weight of loader is fully supported by safety stands.
  • If not equipped with an attachment: Raise loader to required height and place safety stands under "boom arms". Lower loader on stands, relieve hydraulic pressure and ensure weight of loader is fully supported by safety stands.

OUO6038,000193B-19-20061110
