Mounting Frame Hardware—5M Series and 5105ML Tractors

1. IMPORTANT:

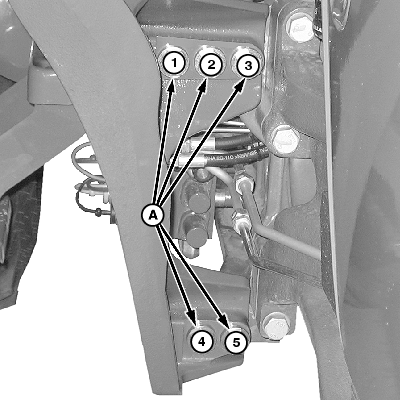

   W20032-UN-10OCT08

   Mounting Hardware—Torque Sequence (Right-Hand Side Shown)


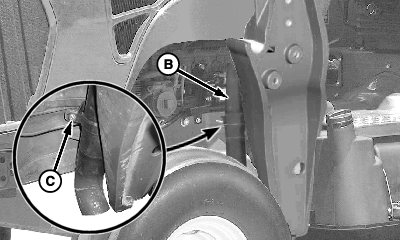

   W20039-UN-20OCT08

   Side-Discharge Exhaust, Left-Hand Side (If Equipped)

   A - Cap Screws, (5 each side)
   M20 x 110 (all except 5105ML)
   M20 x 130 (5105ML only)

   B - Side-Discharge Exhaust Pipe (if equipped)

   C - Clamp

   Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.

   NOTE: Side-discharge exhaust pipe (B) (if equipped) must be removed to access left-hand mounting frame cap screws.

   If equipped with side-discharge exhaust pipe (B), loosen clamp (C) and remove pipe to access left-hand mounting frame cap screws.

---




2. Tighten cap screws (A) to specification in the sequence shown.

   Item	Measurement	Specification
   M20 Cap Screws (A)	Torque	625 N•m (460 lb-ft)

3.

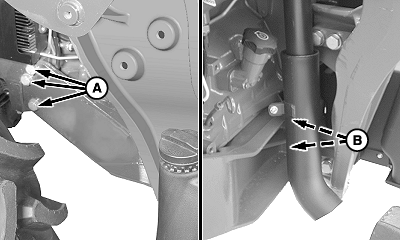

   W20573-UN-04DEC09

   Side Frame—5105ML Tractor (Left-Hand Side Shown)

   A - Cap Screws, M20 x 80 (3 each side)

   B - Cap Screws, M20 x 140 (2 each side)

   5105ML Tractor Equipped with Side Frames: On both sides, tighten side frame cap screws (A and B) to specification.

   Item	Measurement	Specification
   M20 Cap Screws	Torque	438 N•m (323 lb-ft)

---




4. Replace exhaust pipe and tighten clamp.
