Identifying Hose Connections—Loader Equipped with Multicoupler and Operated with Mid-Mount Valve (5M Series and 5105ML Tractors)
CAUTION:
W20041-UN-22OCT08

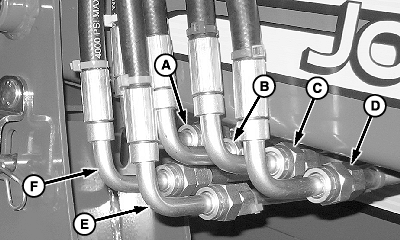

Three-Function Shown
W20042-UN-22OCT08

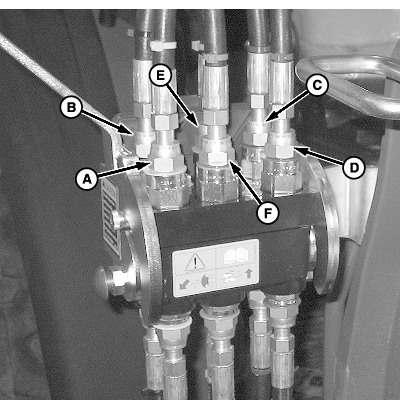

Multicoupler
W20043-UN-22OCT08

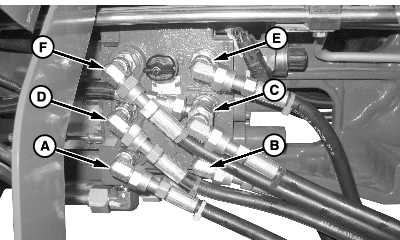

Mid-Mount Valve
Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected to tractor selective control valves as shown.NOTE: Hoses are identified by color-coded tie bands on ends of fittings.
Color identifies hydraulic function.
|
Key |
Tie Band/Plug/Cap Color |
Hydraulic Function |
|---|---|---|
|
A |
Yellow |
Bucket Cylinder—Head End |
|
B |
Black |
Bucket Cylinder—Rod End |
|
C |
Blue |
Lift Cylinder—Head End |
|
D |
Red |
Lift Cylinder—Rod End |
|
E |
Orange |
Attachment Cylinder—Head End |
|
F |
Green |
Attachment Cylinder—Rod End |
|
