Mounting Frame Hardware—5103, 5203, 5303, 5403, 5200, 5200N, 5210, 5210N, 5220, 5300, 5300N, 5310, 5310N, 5320, 5320N, 5400, 5400N, 5045E, 5055E, 5065E, and 5075E Tractors With Cab
IMPORTANT:

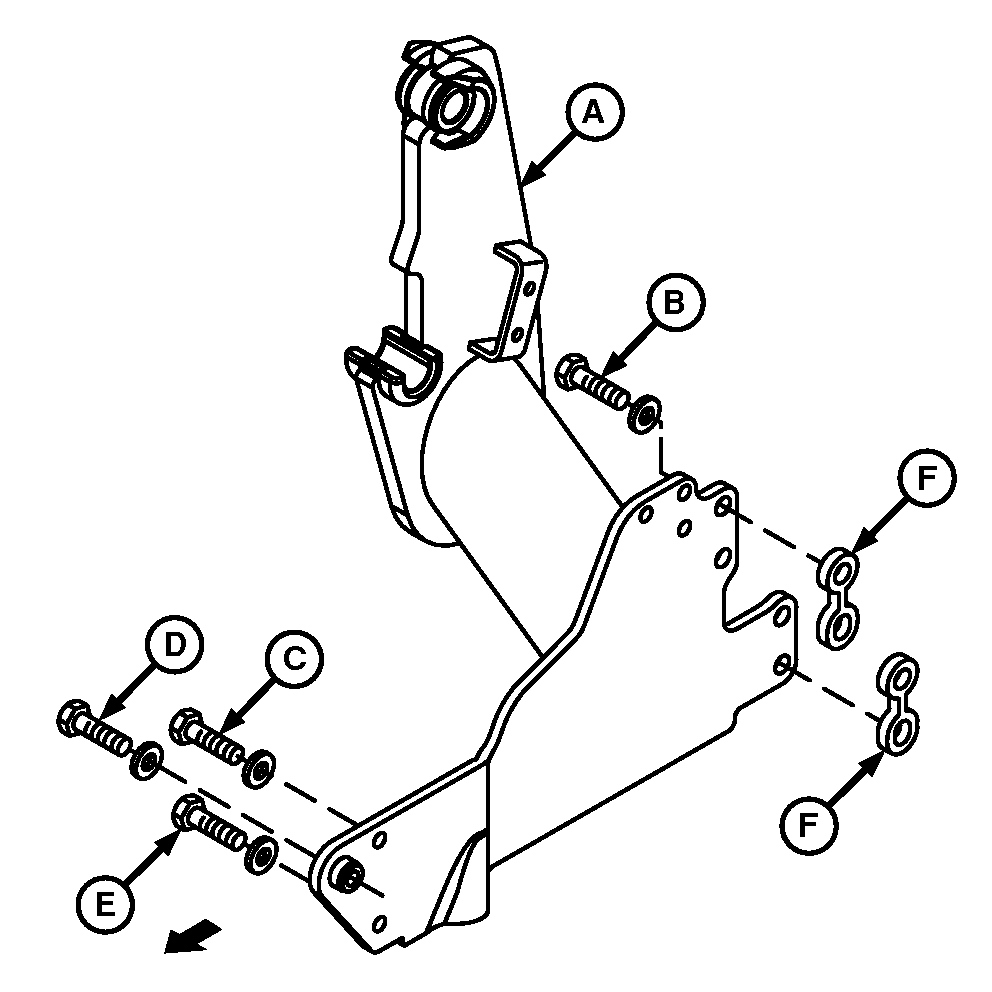

W23090-UN-01NOV12
Right-Hand Side Shown
A - Mounting Frame
B - Cap Screws and Washers, M20 x 65
C - Cap Screw and Washer, M16
D - Cap Screws and Washers, M16 x 70
E - Cap Screws and Washers, M16 x 50
F - Spacers
Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.
| Item | Measurement | Specification |
| Mounting Frame-to-Tractor Frame Hardware | ||
| M20 Cap Screws (B) | Torque | 530 N•m (400 lb-ft) |
| M16 Cap Screws (C, D and E) | Torque | 275 N•m (200 lb-ft) |
|
OUO6064,00009AF-19-20121101 |
