Mounting Frame Hardware—5085E (IT4) and 5100E (IT4) Tractors
IMPORTANT:

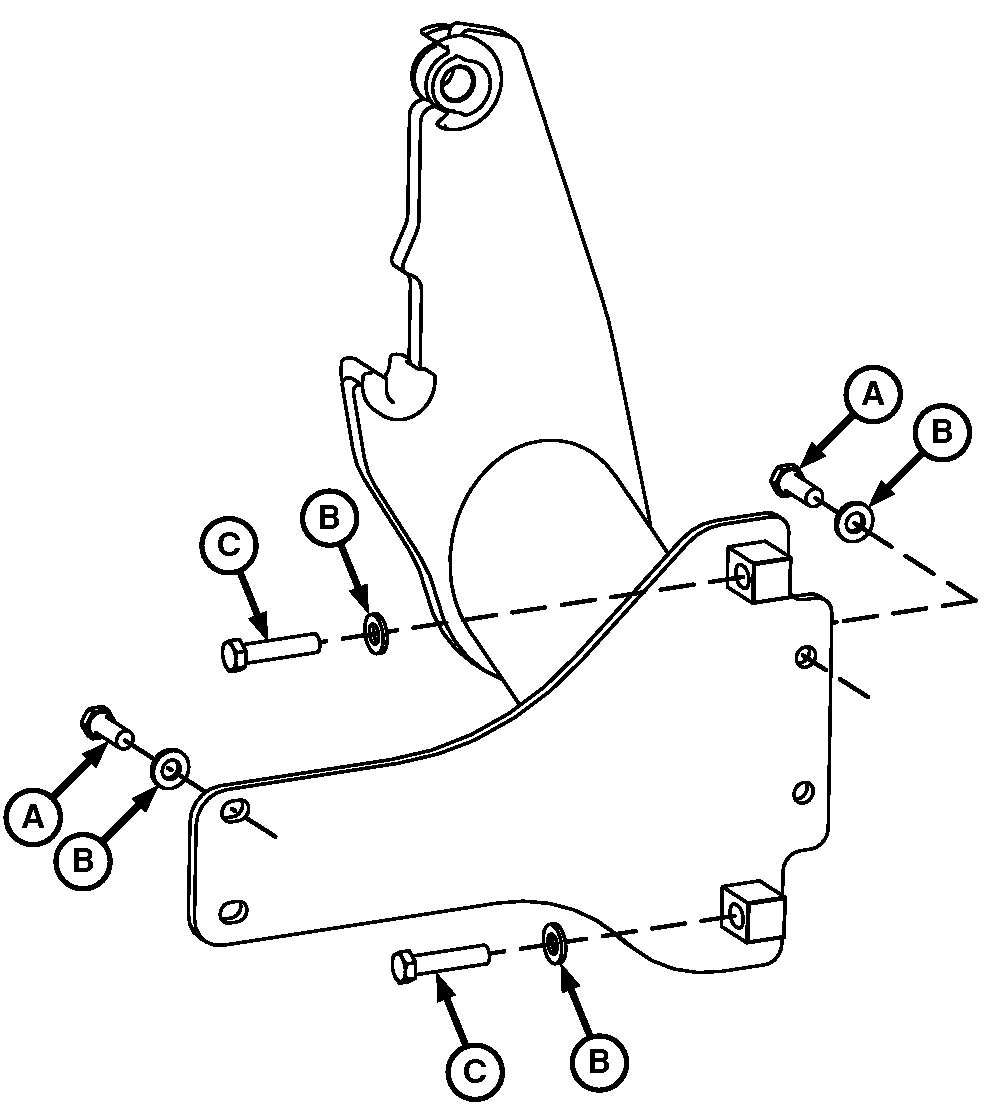

W23261-UN-17DEC12

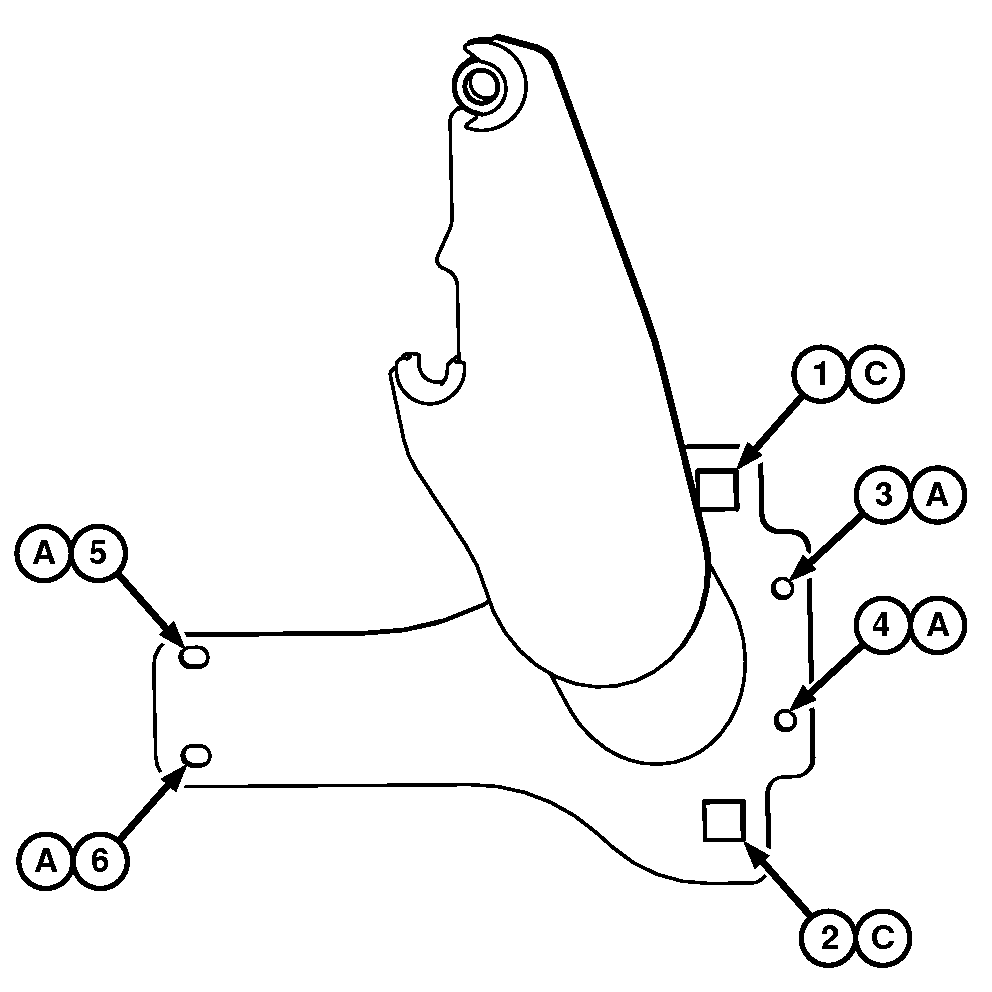

W23262-UN-17DEC12
A - Cap Screws and Washers, M20 x 55
B - Washer, 21.4 x 42 x 5 mm
C - Cap Screws and Washers, M20 x 90
Avoid damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.NOTE: If indicated torque for (1C) cannot be achieved, tighten to maximum torque that can be applied.
Tighten hardware to specification in the sequence shown.
| Item | Measurement | Specification |
| M20 Cap Screws (A) | Torque | 530 N•m (390 lb-ft) |
| M20 Cap Screws (C) | Torque | 610 N•m (450 lb-ft) |
|
