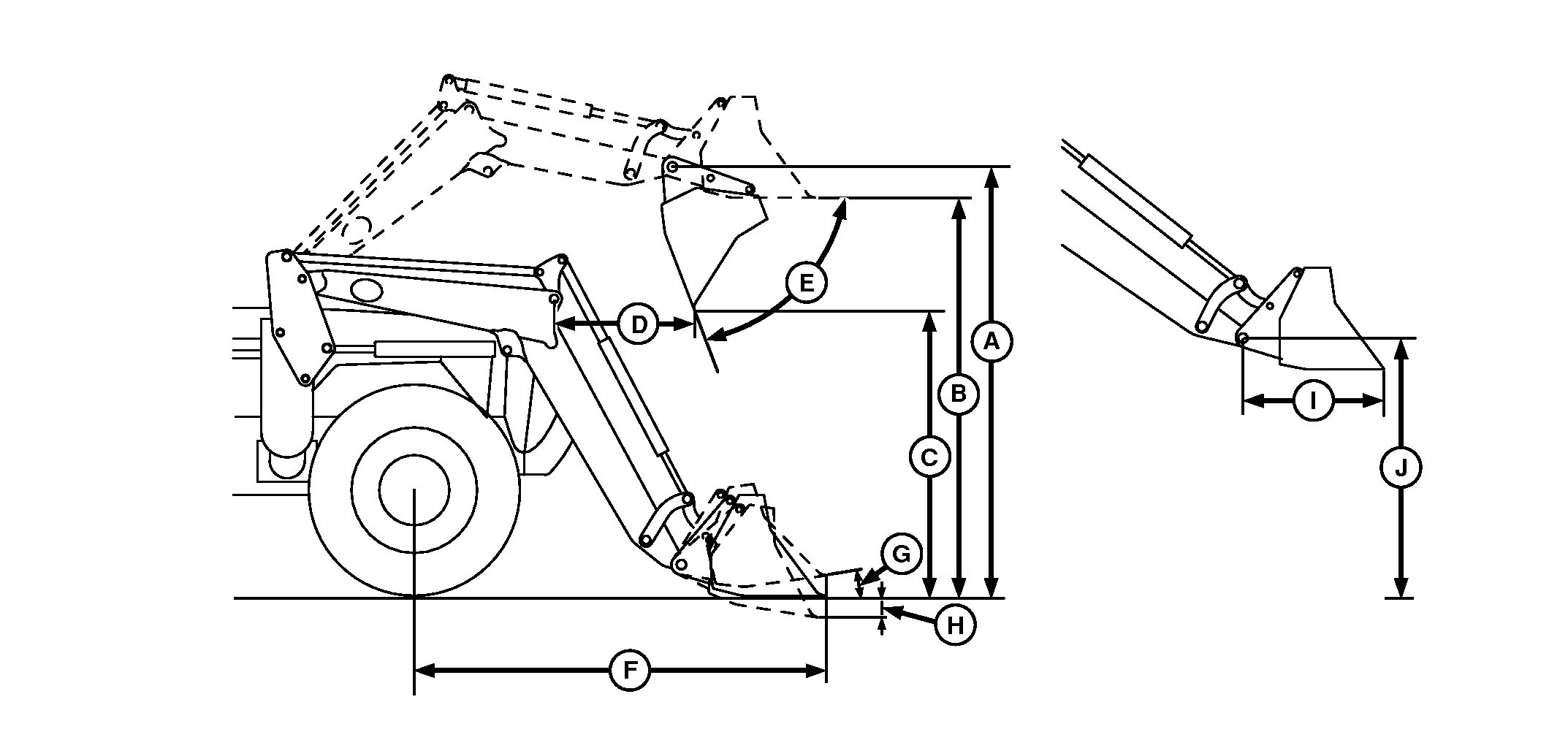

553 Non Self-Leveling Loader on 5D Series Tractors

¹

W23591-UN-18MAR13

Tractor Models 5D Series
Minimum Rear Ballast	3-Point Hitch 1000 kg (2205 lb.)
Front Tires	7.5-16
Rear Tires	16.9-28
Heavy-Duty Materials Bucket
Width	1850 mm (73 in.)
Length	—
Mass	178 kg (392 lb.)
Hydraulic System
Rated Flow	43 L/min. (11 gpm)
Maximum Pressure	19 500 kPa (195 bar) (2828 psi)
Cycle Times (in seconds)
Loader Raise Time	4.6
Loader Lower Time	2.7
Bucket Dump Time	4.3
Bucket Rollback Time	2.5
Lift Height (Maximum)
To Pivot Pin (A)	2973 mm (117 in.)
Clearance
Bucket Level (B)	2743 mm (108 in.)
Bucket Dumped (C)	2252 mm (89 in.)
Digging Depth (H)	215 mm (8 in.)

Reach
At Maximum Lift Height with Bucket Dumped (D)	881 mm (35 in.)
Bucket on Ground with Bucket Leveled (F)	1955 mm (77 in.)
Angles (Maximum)
Dump (E)	44°
Dump at Ground	128°
Rollback (G)	35°
Lift Capacity
To Maximum Height (A) at Pivot Point	1299 kg (2858 lb.)
To Maximum Height (A) at 800 mm (31.5 in.) (I) Ahead of Pivot Point	841 kg (1850 lb.)
To 1500 mm (59 in.) (J) at Pivot Point	1721 kg (3786 lb.)
Breakout Force
At Pivot Point	2437 kg force (5353 lb.-force)
800 mm (31.5 in.) (I) Ahead of Pivot Point	1662 kg force (3644 lb.-force)
