Rear Tread Settings

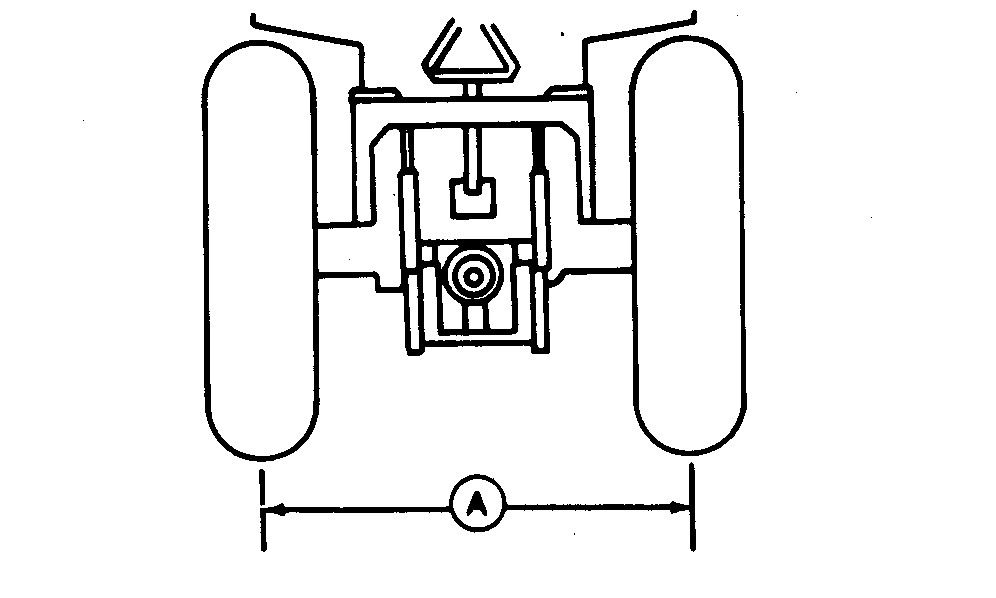

W00851-UN-04JUN93

A - Tread Setting

CAUTION: To help prevent personal injury or death from rollover, use widest distance from tire center-to-tire center (A) to maximize stability. See REAR BALLAST REQUIREMENTS in this section.

• All Except 5000N and 5EN Series Tractors: Never use a tread setting less than 1675 mm (66 in.).
• 5000N Series Tractors: Use 1100 mm (43 in.) or greater.
• 5EN Series Tractors: Use 1208 mm (48 in.) or greater.

See your tractor Operator's Manual to make adjustments.
