OMWZ72401: 724, 732 and 740 Trailed Crop Sprayers, Block File: WZ00085_000012E_19

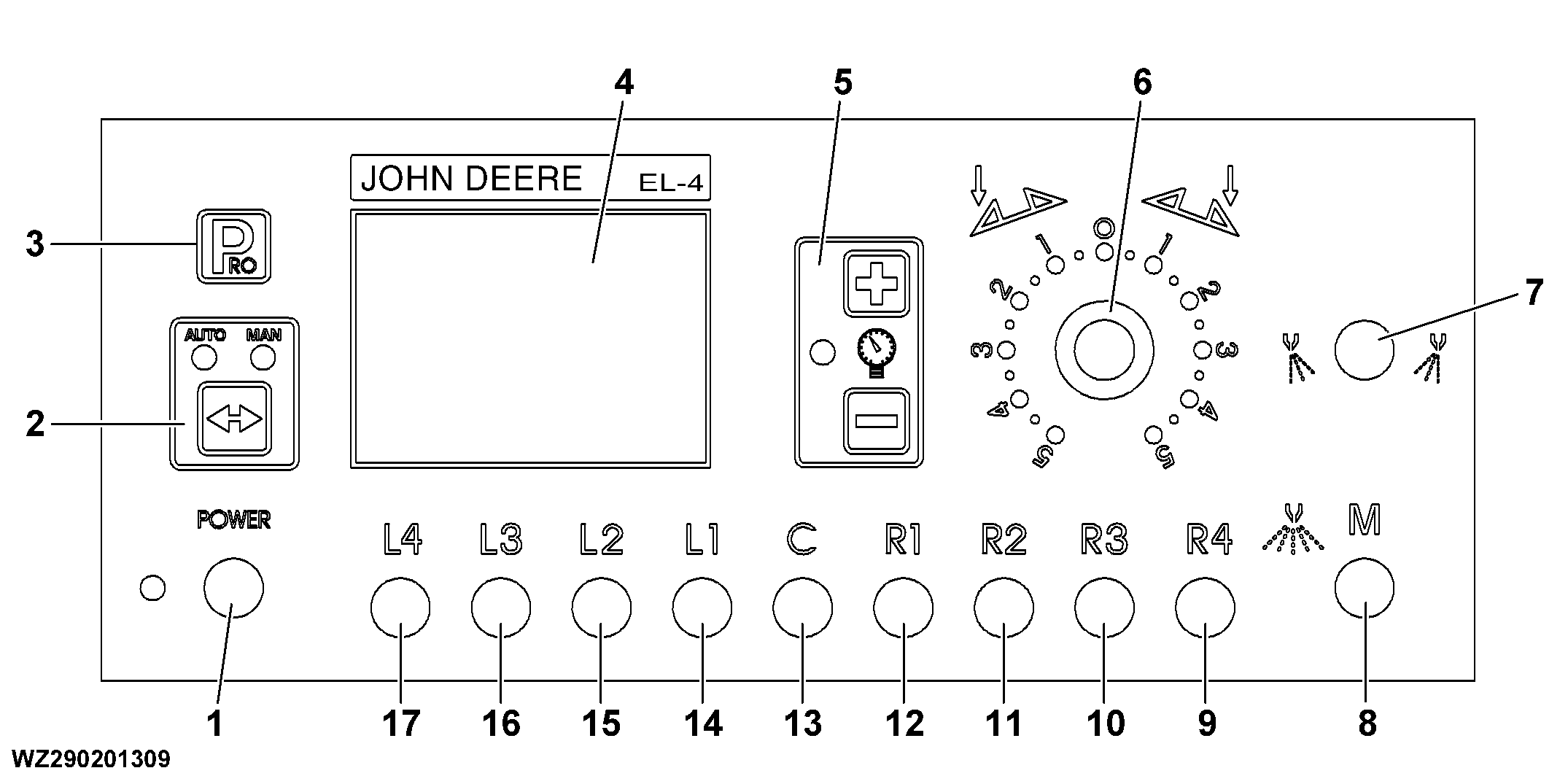

Control Panel

1-Power on/off switch
2-Manual/Automatic operation toggle switch¹
3-Spraying computer display on/off switch
4-LCD screen (display)
5-Setting the spraying pressure (higher/lower) on manual control

6-Electric spray boom tilt correction knob (optional)
7-Edge nozzle operation (not available for 800SE )²
8-Main shut-off valve on/off switch (Master)
9-Boom section valve on/off switch right-4

10-Boom section valve on/off switch right-3
11-Boom section valve on/off switch right-2
12-Boom section valve on/off switch right-1
13-Boom section valve on/off switch (center)

14-Boom section valve on/off switch left-1
15-Boom section valve on/off switch left-2
16-Boom section valve on/off switch left-3
17-Boom section valve on/off switch left-4

¹When you want to work with automatic application rate control, the Auto mode of the operation toggle switch (2) must be activated in order for the computer to be able to control the required application rate in liters per hectare. When the computer is not in use, the Man mode must be activated, in order for the manual pressure regulation system to work.

²The machine is fitted with the boom tilt correction with rotary switch (6) if the boom operation is controlled with the electro-hydraulic control box EHB-1.

WZ00085,000012E -19-22OCT02-1/1
