Power Supply

IMPORTANT: Connect the plug to a 12 V system only.

Power is supplied to the machine through the 3-pole plug (A) and the supply cable, which feeds current to all components via the receiver box. The 3-pole plug must be fitted to a 3-pole power outlet socket (25A) on the tractor.

If the tractor has a 3-Terminal Power Outlet Socket (25A) switched by the ignition key, the sprayer can be connected directly to the tractor without having to install a power harness.

If the tractor does not has a proper 3-Terminal Power Outlet Socket (25A) switched by the ignition key, a 3-Terminal Power Outlet Socket needs to be installed on the tractor. Please refer to "Fitting Electrical Socket to Tractor" in this section.

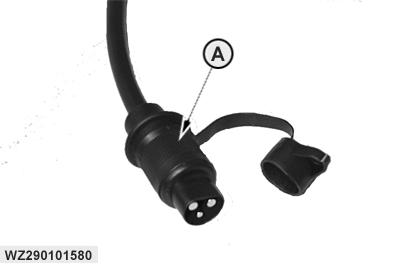

A-3-pole plug
