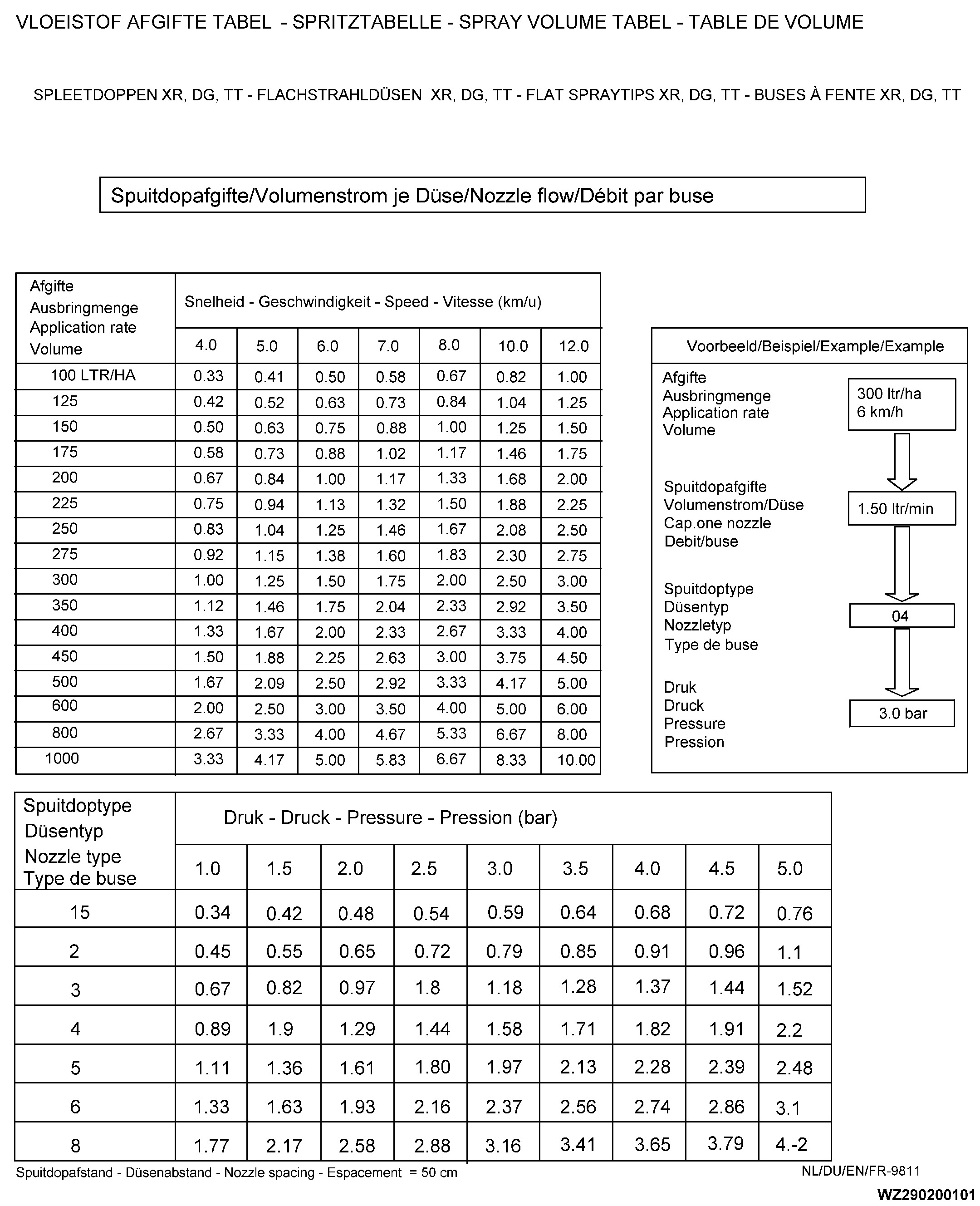

Spray Volume Table
|
|
WZ00085,00002DF -19-10FEB05-1/4
|
|
Nozzle output and nozzle droplet spectres
|
XR-TEEJET
®
|
| |
Spraying pressure in bar |
| |
1 |
1.5 |
2 |
2.5 |
3 |
3.5 |
4 |
| Nozzle no. |
Nozzle output l/min and droplet size (BCPC classification) |
| XR8001 |
0.23 / M |
0.28 / F |
0.32 / F |
0.36 / F |
0.39 / F |
0.42 / F |
0.45 / F |
| XR80015 |
0.34 / M |
0.42 / M |
0.48 / M |
0.54 / F |
0.59 / F |
0.64 / F |
0.68 / F |
| XR8002 |
0.46/ M |
0.56 / M |
0.65 / M |
0.72 / M |
0.79 / M |
0.85 / F |
0.91 / F |
| XR8003 |
0.68 / M |
0.83 / M |
0.96 / M |
1.08 / M |
1.18 / M |
1.27 / M |
1.36 / M |
| XR8004 |
0.91 / C |
1.12 / C |
1.29 / C |
1.44 / M |
1.58 / M |
1.71 / M |
1.82 / M |
| XR8005 |
1.14 / C |
1.39 / C |
1.61 / C |
1.80 / C |
1.97 / C |
2.13 / M |
2.27 / M |
| XR8006 |
1.37 /C |
1.68 / C |
1.94 / C |
2.16 / C |
2.37 / C |
2.56 / C |
2.74 / C |
| XR8008 |
1.82 / VC |
2.23 / C |
2.58 /C |
2.88 / C |
3.16 / C |
3.41 / C |
3.65 / C |
| |
|
|
|
|
|
|
|
| XR11001 |
0.23 / F |
0.28 / F |
0.32 / F |
0.36 / VF |
0.39 / VF |
0.42 / VF |
0.45 / VF |
| XR110015 |
0.34 / F |
0.42 / F |
0.48 / F |
0.54 / F |
0.59 / F |
0.64 / VF |
0.68 / VF |
| XR11002 |
0.46 / M |
0.56 / F |
0.65 / F |
0.72 / F |
0.79 / F |
0.85 / F |
0.91 /F |
| XR11003 |
0.68 / M |
0.83 / M |
0.96 / M |
1.08 / F |
1.18 / F |
1.27 / F |
1.36 /F |
| XR11004 |
0.91 / M |
1.12 / M |
1.29 / M |
1.44 / M |
1.58 / F |
1.71 / F |
1.82 / F |
| XR11005 |
1.14 / M |
1.39 / M |
1.61 / M |
1.80 / M |
1.97 / M |
2.13 / M |
2.27 / F |
| XR11006 |
1.37 / C |
1.68 / M |
1.94 / M |
2.16 / M |
2.37 / M |
2.56 / M |
2.74 /M |
| XR11008 |
1.82 / C |
2.23 / C |
2.58 / M |
2.88 / M |
3.16 / M |
3.41 / M |
3.65 / M |
| |
Spraying pressure in bar |
| |
2 |
2.5 |
3 |
3.5 |
4 |
| Nozzle no. |
Nozzle output l/min and droplet size (BCPC classification) |
| DG110015 |
0.48 / M |
0.54 / M |
0.59 / M |
0.64 / M |
0.68 / M |
| DG11002 |
0.65 / C |
0.72 / M |
0.79 / M |
0.85 / M |
0.91 / M |
| DG11003 |
0.96 / C |
1.08 / C |
1.18 / M |
1.27 / M |
1.36 / M |
| DG11004 |
1.29 / C |
1.44 / C |
1.58 / C |
1.71 / M |
1.82 / M |
| DG11005 |
1.61 / C |
1.80 / C |
1.97 / C |
2.13 / M |
2.27 / M |
|
TEEJET is a trademark of Spraying System Co.
|
WZ00085,00002DF -19-10FEB05-2/4
|
| |
Spraying pressure in bar |
| |
1 |
1.5 |
2 |
2.5 |
3 |
3.5 |
4 |
5 |
6 |
| Nozzle no. |
Nozzle output l/min and droplet size (BCPC classification) |
| TT11001 |
0.23 / C |
0.28 / M |
0.32 / M |
0.36 / M |
0.39 / M |
0.42 / F |
0.45 / F |
0.50 / F |
0.55 / F |
| TT110015 |
0.34 / C |
0.42 / C |
0.48 / M |
0.54 / M |
0.59 / M |
0.64 / M |
0.68 / M |
0.76 / F |
0.83 / F |
| TT11002 |
0.46 / VC |
0.56 / C |
0.65 / C |
0.72 / C |
0.79 / M |
0.85 / M |
0.91 / M |
1.02 / M |
1.12 / F |
| TT11003 |
0.68 / VC |
0.83 / C |
0.96 / C |
1.08 / C |
1.18 / C |
1.27 / M |
1.36 / M |
1.52 / M |
1.67 / M |
| TT11004 |
0.91 / EC |
1.12 / VC |
1.29 / C |
1.44 / C |
1.58 / C |
1.71 / C |
1.82 / C |
2.04 / M |
2.23 / M |
| TT11005 |
1.14 / EC |
1.39 / EC |
1.61 / VC |
1.80 / C |
1.97 / C |
2.13 / C |
2.27 / C |
2.54 / C |
2.79 / C |
| TT11006 |
1.37 / |
1.68 / |
1.94 / |
2.16 / |
2.37 / |
2.56 / |
2.74 / |
3.06 / |
3.35 / |
| TT11008 |
1.82 / |
2.23 / |
2.58 / |
2.88 / |
3.16 / |
3.41 / |
3.65 / |
4.08 / |
4.47 / |
| |
Spraying pressure in bar |
| |
3 |
3.5 |
4 |
4.5 |
5 |
6 |
7 |
8 |
| Nozzle no. |
Nozzle output l/min and droplet size (BCPC classification) |
| AI110015 |
0.59 / VC |
0.64 / VC |
0.68 / VC |
0.72 / C |
0.76 / C |
0.83 / C |
0.90 / M |
0.96 / M |
| AI11002 |
0.79 / VC |
0.85 / VC |
0.91 / VC |
0.97 / VC |
1.02 / C |
1.12 / C |
1.21 / C |
1.29 / M |
| AI110025 |
0.99 / VC |
1.07 / VC |
1.14 / VC |
1.21 / VC |
1.28 / VC |
1.40 / C |
1.51 / C |
1.62 / M |
| AI11003 |
1.18 / EC |
1.27 / EC |
1.36 / VC |
1.45 / VC |
1.52 / VC |
1.67 / C |
1.80 / C |
1.93 / C |
| AI11004 |
1.58 / EC |
1.71 / EC |
1.82 / VC |
1.94 / VC |
2.04 / VC |
2.23 / C |
2.41 / C |
2.58 / C |
| AI11005 |
1.97 / EC |
2.13 / EC |
2.27 / EC |
2.41 / VC |
2.54 / VC |
2.79 / C |
3.01 / C |
3.22 / C |
| AI11006 |
2.37 / EC |
2.56 / EC |
2.74 / EC |
2.90 / |
3.06 / |
3.35 / |
3.62 / |
3.87 / |
| AI11008 |
3.16 / EC |
3.41 / EC |
3.65 / EC |
3.87 / |
4.08 / |
4.47 / |
4.83 / |
5.16 / |
|
TEEJET is a trademark of Spraying System Co.
|
WZ00085,00002DF -19-10FEB05-3/4
|
| |
Spraying pressure in bar |
| |
3 |
3.5 |
4 |
4.5 |
5 |
6 |
7 |
8 |
| Nozzle no. |
Nozzle output l/min. and droplet size (BCPC classification) |
| ID12001 |
0.39/C |
0.42/C |
0.45/C |
0.48/C |
0.51/C |
0.57/C |
0.61/M |
0.65/M |
| ID120015 |
0.59/VC |
0.63/C |
0.68/C |
0.72/C |
0.76/C |
0.84/C |
0.90/C |
0.96/M |
| ID12002 |
0.78/VC |
0.85/VC |
0.90/C |
0.96/C |
1.01/C |
1.11/C |
1.19/C |
1.27/C |
| ID110025 |
0.99/VC |
1.07/VC |
1.15/VC |
1.22/VC |
1.28/C |
1.40/C |
1.52/C |
1.62/C |
| ID12003 |
1.17/VC |
1.26/VC |
1.35/VC |
1.44/VC |
1.52/VC |
1.64/C |
1.79/C |
1.91/C |
| ID12004 |
1.55/EC |
1.68/VC |
1.80/VC |
1.91/VC |
2.02/VC |
2.21/VC |
2.37/C |
2.53/C |
| ID12005 |
1.94/EC |
2.10/EC |
2.25/VC |
2.39/VC |
2.48/VC |
2.75/VC |
2.96/VC |
3.17/VC |
| ID12006 |
2.32/EC |
2.51/EC |
2.69/EC |
2.86/VC |
3.01/VC |
3.28/VC |
3.54/VC |
3.79/VC |
| ID12008 |
3.16/EC |
3.41/EC |
3.65/EC |
3.87/EC |
4.08/EC |
4.47/VC |
4.83/VC |
5.16/VC |
| |
Spraying pressure in bar |
| |
1.5 |
2 |
2.5 |
3 |
3.5 |
4 |
4.5 |
5 |
6 |
| Nozzle no. |
Nozzle output l/min. and droplet size (BCPC classification) |
| IDK120015 |
0.42/C |
0.48/C |
0.53/C |
0.59/C |
0.63/C |
0.68/M |
0.72/M |
0.76/M |
0.84/M |
| IDK12002 |
0.55/VC |
0.63/C |
0.71/C |
0.78/C |
0.85/C |
0.90/C |
0.96/M |
1.01/M |
1.11/M |
| IDK110025 |
0.70/VC |
0.81/VC |
0.90/C |
0.99/C |
1.07/C |
1.15/C |
1.22/C |
1.28/M |
1.40/M |
| IDK12003 |
0.82/VC |
0.95/VC |
1.06/VC |
1.17/C |
1.26/C |
1.35/C |
1.44/C |
1.52/C |
1.64/M |
| IDK12004 |
1.09/VC |
1.26/VC |
1.42/VC |
1.55/VC |
1.68/C |
1.80/C |
1.91/C |
2.02/C |
2.21/C |
| IDK12005 |
1.36/EC |
1.57/VC |
1.77/VC |
1.94/VC |
2.10/VC |
2.25/C |
2.39/C |
2.48/C |
2.75/C |
|
LECHLER is a registered trademark of Lechler GmbH + Co KG.
|
WZ00085,00002DF -19-10FEB05-4/4
|
|
