Lower Linkage Steering Drawbar Automatic Tracking System Assembly

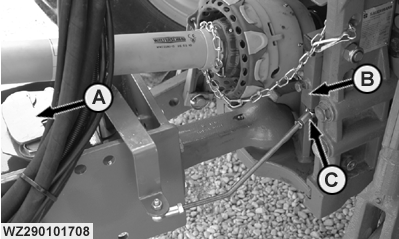

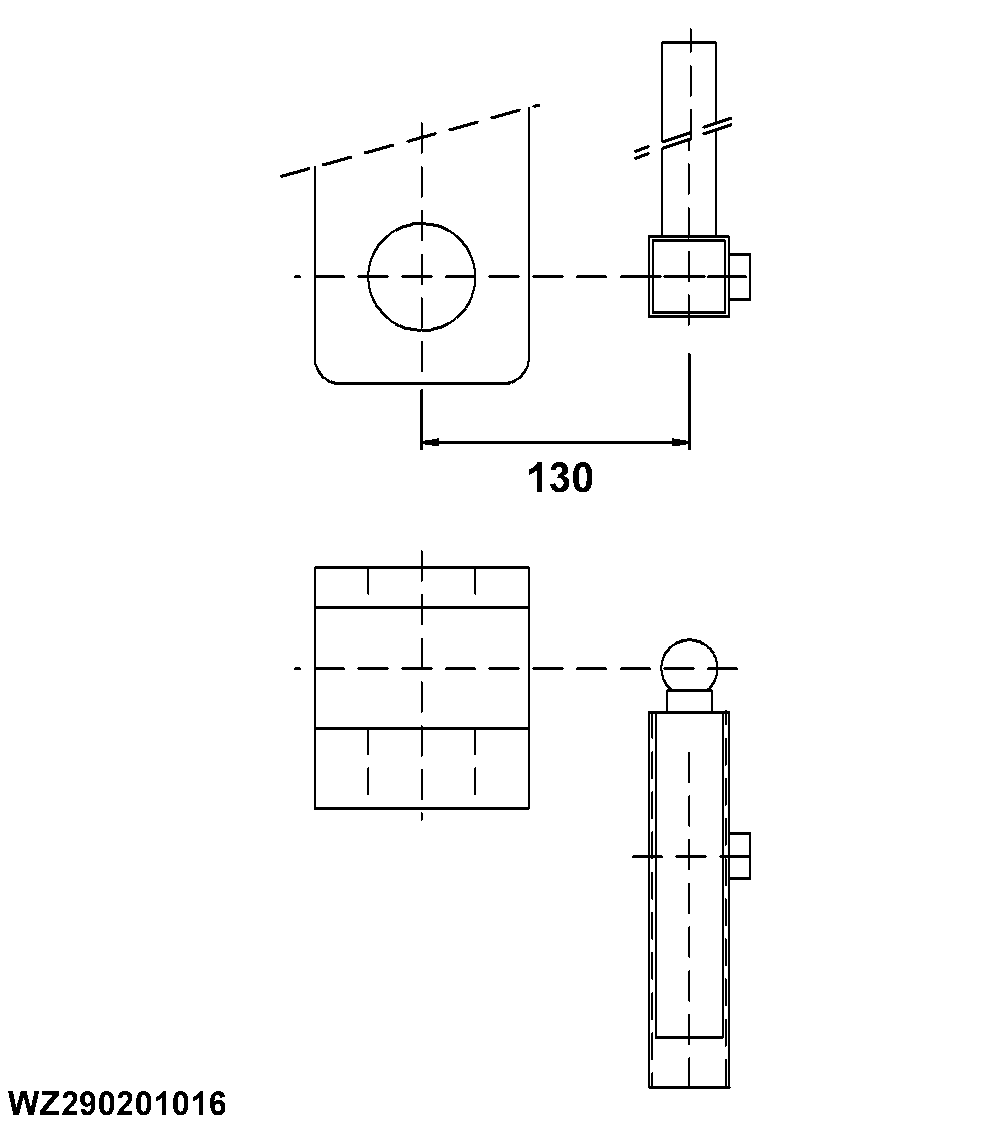

Attach the sliding piece with rod (A), which activates the sensors, to the tractor. This is done by means of fixed support bracket (B) on the drawbar eye. First attach the supplied large square pipe to the tractor frame by means of the flat strip. The separate sleeve with pivot (ball) must be adjusted level to the steering rod eye, in other words, the steering rod must be horizontal. Furthermore it is important that the pivot (ball) (C) of the separate sleeve is level with the drawbar eye of the sprayer.
A-Sliding piece
B-Support
C-Ball
|
|
