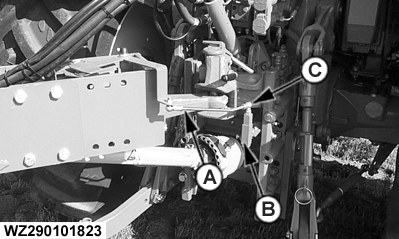

Upper Linkage Steering Drawbar Automatic Tracking System AssemblyAttach the pivoting plate (A), which activates the sensors, with the steering rod to the tractor. This is done by means of fixed support bracket (B). First attach the supplied large square pipe to the tractor frame by means of the flat strip. The separate sleeve with pivot (ball) must be adjusted level to the steering rod eye, in other words, the steering rod must be horizontal. Furthermore it is important that the pivot (ball) (C) of the separate sleeve is level with the drawbar eye of the sprayer. The distance between attachment points is the same in both drawbar configurations (upper / lower connections). |
|
