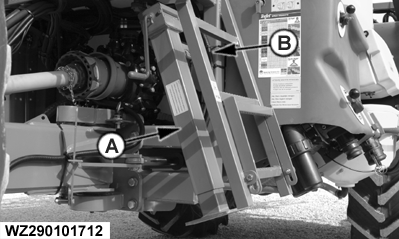

Support LegOnce the machine has been coupled, the support leg can be taken from the drawbar after removal of the locking pin. The support leg can be fitted to the sprayer on the left side of the machine. Secure the locking pin (B).
|
|
CAUTION:
Never disconnect the sprayer when the booms are not in the transport position.
WZ00085,0000377 -19-02AUG05-1/1 |
