Coupling Brake Hoses

NOTE: The brake system may be oil or air pressurized.

IMPORTANT: Check that all hose connections are clean.

To be able to use oil pressure braking, the hydraulic hose in the brake valve has to be connected to the tractor (see tractor manual).

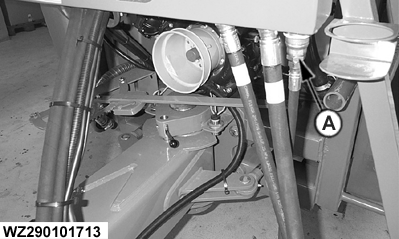

If the hose is disconnected, connect the quick-coupling tip to the proper parking position (A).

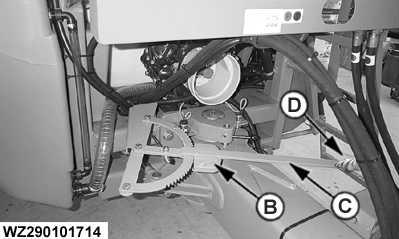

Unlocking the parking brake:

• Turn away catch (B) from the brake lever (the catch may not be visible anymore).
• To unlock the parking brake, pull loose brake lever (C) with a brief and anti-clockwise movement and next put back the lever with a clockwise movement.

Attaching the emergency brake:

• Engage catch (B) of the brake lever (the catch must be visible).
• Fasten rope (D) to the tractor.

When uncoupling the machine, remove the rope and engage the emergency brake by turning the brake lever anti-clockwise, thus applying the brake.

A-Parking position of oil pressure brake hose
B-Catch (unlocked)
C-Brake lever
D-Rope

WZ00085,0000379 -19-03AUG05-1/2

IMPORTANT: Before connecting the hoses of the pneumatic brake system, verify that the couplings are clean. Immediately after disconnecting the hoses, install the dust caps on the couplings. The tractor must be fitted with a 2-line air pressure system. When attaching the air pressure hoses, do not use the black connection option.

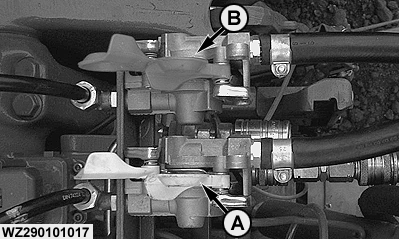

When connecting the air pressure hoses to the tractor, first attach the command line with the yellow coupling (A) and next the supply line with the red coupling (B), see also tractor manual.

A-Command line with yellow coupling
B-Air supply line with red coupling

WZ00085,0000379 -19-03AUG05-2/2
