Public Road Travelling Lights

When travelling on public roads, cable with light plug (A) must be connected to the tractor.

The pin positions of light plug are indicated in the table.

WZ290100021
WZ290101717

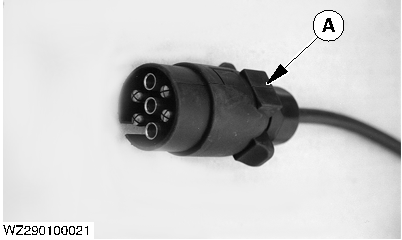

A-Public road travelling light plug

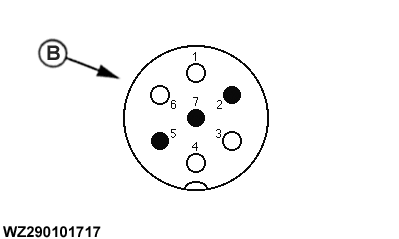

B-Pin position of light plug (vehicle-side)

Pin position of 7-pole light plug
Number Code Function Cable Colour
1 L Flashing light left Yellow
2 54G Constant current Blue
3 31 Ground White
4 R Flashing light right Green
5 58R Lighting right Brown
6 54 Braking light Red
7 58L Lighting left Black
