Mechanical Transport Lock

causym CAUTION: When driving with the booms folded in, the mechanical lock must always be used. Do not unlock until in the field when the booms are folded out.

On the left-hand side, a mechanical lock has been fitted for safety purposes when travelling when the booms are folded in. To lock the drawbar, place the drawbar in the center position. Pull lever (D) in position (A). The locking pin (C) will lock the drawbar. To unlock the drawbar, push lever (D) in position (B). The locking pin will be released.

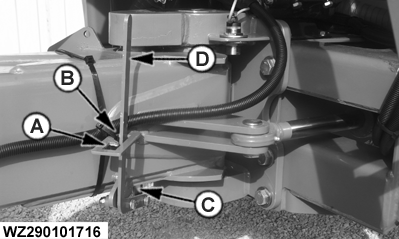

WZ290101716


A-Drawbar, locked position
B-Drawbar, unlocked position
C-Locking pin
D-Lever
