Filling Hole

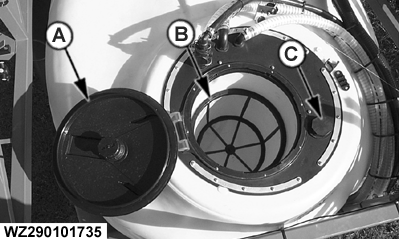

The raised filling hole has a diameter of 40 cm and has a hinged tank lid (A) with vent and a basket strainer (B). The cover can be opened by turning it in the direction of the OPEN arrow and then pulling it up. The cover is closed by pressing it down and then turning it in the direction of the CLOSE arrow. An additional tank de-aeration (C) is fitted near the tank lid for sufficient de-aeration when filling the tank with a high capacity.

A-Hinged tank lid
B-Basket strainer
C-Additional de-aeration

WZ00085,0000387 -19-17AUG05-1/1
