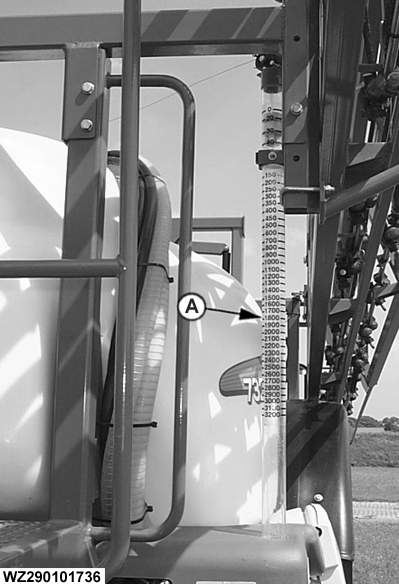

Liquid Level Indicator (Solution Tank)The level of liquid in the solution tank is measured by a float fitted centrally in the tank. The tank content can be read on the front left of measuring tube (A) in graduations of 10 liters in the range from 0 to 100 l, 50 liter graduations in the range from 100-450 l and 100 liter graduations above 500 l.
|
|
