Attachment of Transport Lift Hooks

Whenever the machine needs to be consigned by ship, train or truck e.g. and it is not possible to roll-on or roll-off the machine, the sprayer can be lifted by using a crane. The four lift hooks can be located at the front side (A) and at the rear side (B) of the machine. For the total machine weight, refer to "Dimensions and Weights" in the section "Specifications".

CAUTION: The machine may only be lifted by using all 4 lift hooks, otherwise serious damage and hazard may result.

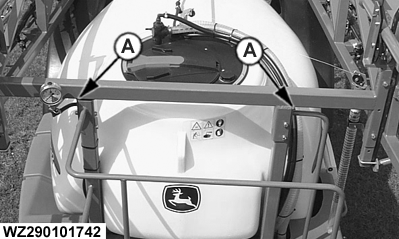

A-Attachment points front
B-Attachment points rear

WZ00085,000038A -19-18AUG05-1/1
