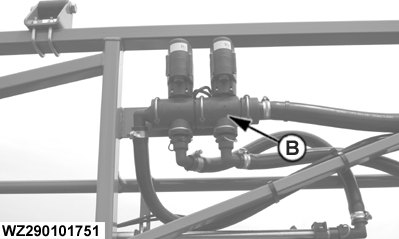

Electrical Boom Section ValvesThe liquid is transported from the pressure line filter to the left and right spray boom segments. Using the boom section valves (A), 4 to 9 sections can be operated, depending on the version (L4-L3-L2-L1-C-R1-R2-R3-R4). The sections are shut off by means of electrically operated valves, located at the centre frame. When the machine is equipped with the optional ring line circulation system, the section valves are located in the spray boom (B). Operation of the boom section valves can be performed simply from the control panel. The boom section valve is open when the switch in question is in the up position (when master shut-off valve M is active), the shut-off valves are closed when the switch points downwards.
|
|
